UPGRADE YOUR RODS FOR ULTIMATE HIGH HORSEPOWER RELIABILITY

IE forged drop-in rods upgrade the weak stock units without changing the factory pistons. Strengthening your VW/Audi 1.8T 20V 06A engine for a larger turbo or more boost and keep your engine running reliably.



Product Features

• Drop-in rod 19 mm tapered wrist pin for use with stock 19mm pistons only
• Forged from vacuum drawn 2 pieces 4340 chrome moly steel
• Upgraded H beam design greatly increases strength and durability
• Combination tested to 700HP on 4 cylinder engines
• Includes IE Spec ARP 2000 rod bolts with "IE" stamp to ensure a genuine product
• Individual computer-optimized design to match unique VW/Audi engine applications
• Honed to exacting tolerances within 250 millionths of an inch
• Optional forced pin oiling (rifle drilling) for long wrist pin life
• Each connecting rod set is balanced to weights within +/- 1 gram
• Dimensionally and magnaflux inspected to ensure extreme reliability
• Multi-stage heat treated for dimensional stability and fatigue life



Overview

When increasing the power output of your VW & Audi 20V 1.8T engine, internal parts begin to fail as they are pushed far beyond their original factory spec limits. Integrated Engineering Forged Connecting Rods are designed to replace the factory units and take the beating from today's high-output power modifications. Drive fast and reliably with IE performance rods, guaranteed to support 700HP!



TECHNICAL DIMENSIONS

  • Center to Center: 144mm
  • Wrist Pin Diameter: 19mm
  • Big End Journal Width: 24.90mm
  • Wrist Pin Style: Non-tapered
  • Big End Journal Diameter: 50.60mm
  • Average Rod Weight (with Bolts): 546 grams
  • Rod Bolt Dimensions: 3/8" x 1.5" UHL



ADDITIONAL FEATURES

H BEAM DESIGN

The H-beam design is the workhorse of our connecting rod product line. This design features strength, durability, stiffness, and rigidity. IE H-beam Connecting Rods are a great upgrade over weaker factory units.

COMPUTER OPTIMIZED

All IE rods are designed specifically for the application using relevant cylinder pressure and other application-specific factors. We put our vast European engine knowledge to use when designing each application.

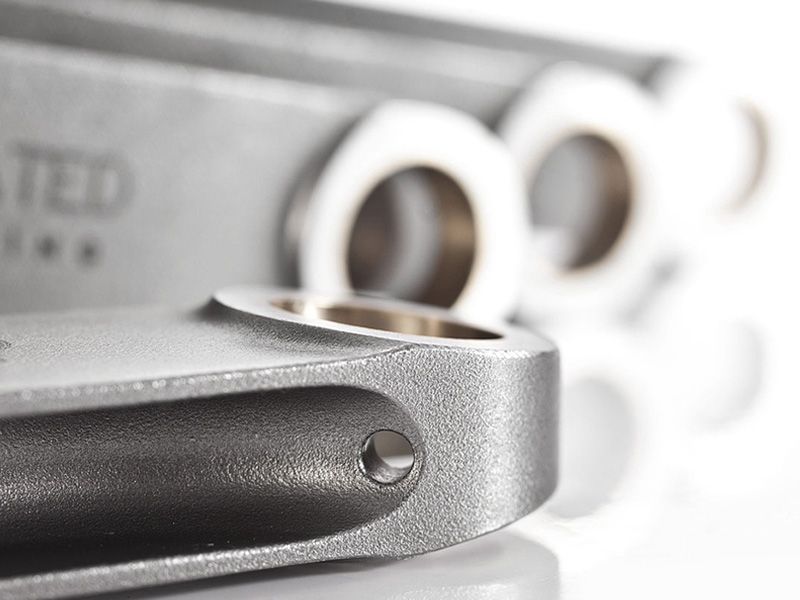

RIFLE DRILLING

Also referred to as Forced Pin Oiling (FPO), rifle drilling increases wrist pin longevity by providing additional lubrication. This upgrade is highly recommended for street-driven cars that see mileage put on them. Rifle drilling is sold separately on this application.

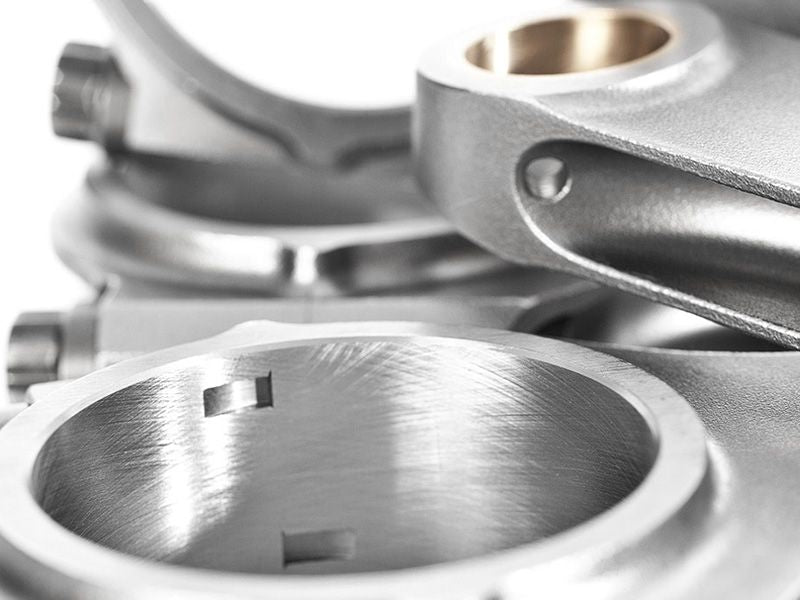

HONED IN-HOUSE

Honing the connecting rod big end in-house on state of the art equipment ensures the tolerances are set correctly to ensure proper bearing operation. Lesser quality rods are often not honed with the same attention to detail.

MATERIAL FORGED 4340

Made from strong and durable 2 piece 4340 forgings these rods will withstand almost everything you can throw at them.

IE/ARP ROD BOLTS

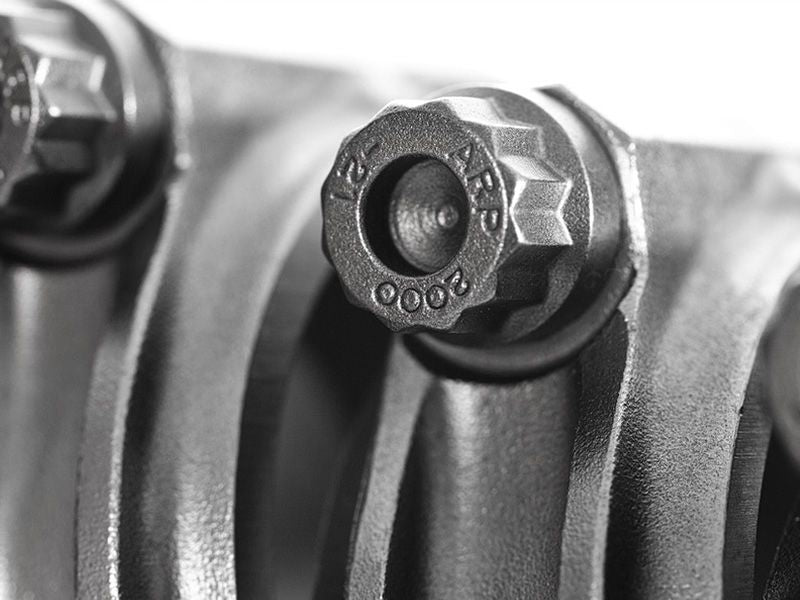

All IE rods come standard with ARP 2000 rod bolts. The rod bolts included in every set of IE rods are stamped with the letters "IE" as a way to ensure you have a genuine set of IE rods.



INCLUDED ARP 2000 ROD BOLT TORQUE SPECS

*The following torque spec is for the included ARP 2000 3/8" rod bolts using the included ARP assembly lubricant only. Do not follow this guide using ARP +625, other assembly lubricants, or alternative bolts.


STRETCH GAUGE

The preferred method of measuring bolt load is with a stretch bolt gauge. The included ARP 2000 bolts need to be tightened and measured to .006” of stretch using the included ARP assembly lubricant.

TORQUE WRENCH

When using a high-quality torque wrench, first verify the torque wrench has not been dropped and is properly calibrated. A un-calibrated torque wrench can lead to under/over torque and rod bolt failure. Torque each rod bolt to a final torque of 50 ft/lbs. We recommend torquing the bolt, breaking it loose, and re-torquing the bolt 3 times per bolt. This ensures proper rod bolt stretch and that the rod cap is fully seated. Do not exceed 50 ft/lbs. This torque spec is based off the included ARP assembly lubricant.



TECHNICAL DETAILS

Connecting rods are some of the highest stressed components in an engine and thus require extreme attention to detail to ensure proper operation and reliability.  Integrated Engineering ensures the success of your next engine build by putting each set of connecting rods through a rigorous quality control process. For years Integrated Engineering H-beam Rods have been an integral part of delivering the power that the highest powered turbo setups and race engines demand.

Extra attention has been paid to even the smallest details such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found anywhere else. Each and every set is finish machined and honed in-house for perfectly round and on size big-end bores, resulting in the industry's lowest failure rates. All rods in this series feature generous wrist pin oiling and optional rifle drilling.  One of the hallmarks of a high quality connecting rod is its strength to weight ratio. In order to create this balance of strength and lightweight, our optimized H beam design is utilized and validated using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible, perfected for today's powerful and high rpm European applications.



VEHICLE FITMENT

  • Audi - A4 1996-2001 (B5 - B5.5) 1.8T 20V 058 & 06A engines
  • Audi - A4 2002-2005 (B6) 1.8T 20V engines
  • Audi - A4 2005-2008 (B7) 2.0T FSI EA113 engines
  • Audi - A6 1998-2004 (C5) 1.8T 20V engines
  • Audi - A6 Allroad 1998-2004 (C5) 1.8T 20V engines
  • Audi - A6 2005-2011 (C6) 2.0T FSI EA113 engines
  • Audi - A6 Allroad 2005-2011 (C6) 2.0T FSI EA113 engines
  • Audi - TT 2000-2006 (MK1 - 8N) 1.8T 20V engines
  • Audi - TT 2008-2015 (MK2 - 8J) 2.0T FSI EA113 engines (timing belt driven engines only)
  • Audi - TTS 2008-2015 (MK2 - 8J) 2.0T FSI EA113 engines
  • Audi - A3 1996-2003 (MK1 - 8L) 1.8T 20V engines
  • Audi - S3 1996-2003 (MK1 - 8L) 1.8T 20V engines
  • Audi - A3 2006-2013 (MK2 - 8P) 2.0T FSI EA113 engines (timing belt driven engines only)
  • Audi - S3 2006-2013 (MK2 - 8P) 2.0T FSI EA113 engines
  • VW - Golf 1993-1999.5 (MK3) 2.0L 8V engines & 2.0L 16V ABF engines
  • VW - Golf 1999-2005 (MK4) 1.8T 20V engines & 2.0L 8V engines
  • VW - GTI 1999-2005 (MK4) 1.8T 20V engines
  • VW - GTI 2006-2009 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW - Golf R 2012-2012 (MK6) 2.0T FSI EA113 engines
  • VW - Corrado 1988-1995 (A3) G60 & 2.0L 16V ABF engines
  • VW - Jetta 1993-1999 (MK3) 2.0L 8V & 2.0L 16V ABF engines
  • VW - Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V & 2.0L 8V engines
  • VW - Jetta & Jetta GLI 2006-2010 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW - Beetle 1998-2011 (1C - 9C - 1Y) 1.8T 20V, 2.0L 8V engines, & 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW - Passat 1998-2005 (B5 - B5.5) 1.8T 20V 058 & 06A engines
  • VW - Passat 2006-2010 (B6) 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW - EOS 2006-2015 (1F7) 2.0T FSI EA113 engines (timing belt driven engines only)



PISTON FITMENT GUIDE

Audi - A4 1996-2001 (B5 - B5.5) 06A 1.8T 20V engines*
Audi - A4 2002-2005 (B6) 06A 1.8T 20V engines*
Audi - A6 1998-2004 (C5) 06A 1.8T 20V engines*
Audi - A6 Allroad 1998-2004 (C5) 06A 1.8T 20V engines*
Audi - TT 2000-2006 (MK1 - 8N) 06A 1.8T 20V engines*
Audi - A3 1996-2003 (MK1 - 8L) 06A 1.8T 20V engines*
Audi - S3 1996-2003 (MK1 - 8L) 06A 1.8T 20V engines*
VW - Golf 1999-2005 (MK4) 06A 1.8T 20V engines*
VW -GTI 1999-2005 (MK4) 06A 1.8T 20V engines*
VW -Jetta & Jetta GLI 1999-2005 (MK4) 06A 1.8T 20V engines*
VW -Beetle 1998-2011 (1C - 9C - 1Y) 06A 1.8T 20V engines*
*ENGINE CODES: AMB, ARX, ARY, AUM, AUQ, AWM, AWP, AWW, BJX

*FITS STOCK PISTONS WITH 19MM TAPERED WRIST PINS ONLY



AVAILABLE ROD BEARINGS


Mahle Motorsport performance rod bearings - IE Part Number: MAH-VC1027

Calico/ACL performance coated rod bearings - IE Part Number: CAL-4B1606H

OE replacement rod bearings - IE Part Number: OEM-18T-RBSET



AVAILABLE ROD INSTALL KITS

06A 1.8T Basic Rod Install Kit - IE Part Number: OEM-18T-RIK1

Engine Codes: AMB, ARX, ARY, ATW, AUM, AWM, AWP, AWW, BJX


06A 1.8T Ultimate Rod Install Kit - IE Part Number: OEM-18T-RIK2
Engine Codes: AMB, ARX, ARY, ATW, AUM, AWM, AWP, AWW, BJX





FAQ



Are these are a direct replacement for my factory rods?

 These rods fit several VW/Audi engines that use a 144x20mm rod. Due to the wide range of engines these rods fit, please see the applications table above.



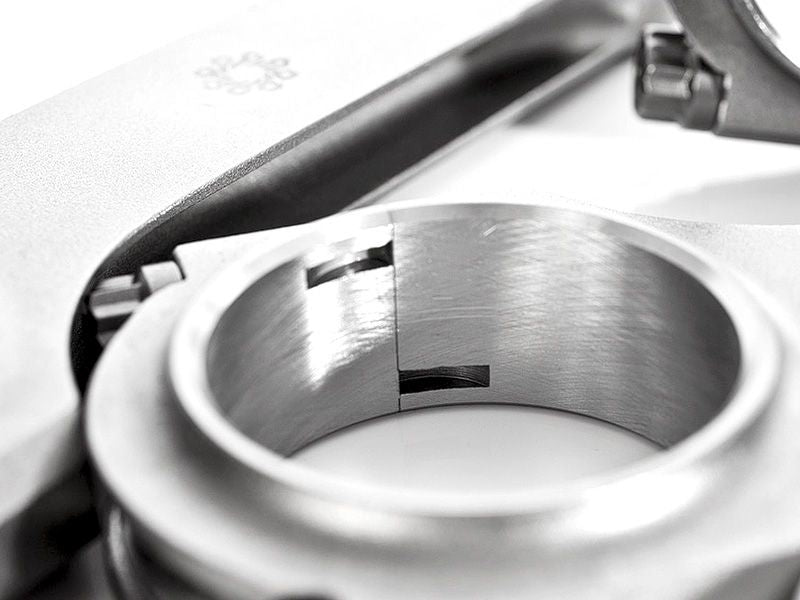

Is there a proper orientation to install the bearing tangs on our connecting rods?

 We recommend installing the bearings tangs facing the exhaust side of the engine.



Are these connecting rods forged?

 Yes, all Integrated Engineering Connecting Rods are made from tough and durable 4340 forgings. These forgings far exceed the quality of most factory rods that are typically made from powdered metal as a cost-saving measure.



What other parts will be needed to install my new IE connecting rod set?

 At a minimum, you should use a new set of connecting rod bearings when installing rods. We also offer several install kits to make this process as easy as possible. For more information on rod bearings and install kits, please see the install kits section above.



Do these rods require any additional machine work for installation?

 IE connecting rods are delivered to you in "ready to install" condition. Other engine machine work may be required though when rebuilding an engine, such as decking the block or boring and honing cylinder walls.



Is balancing the engine required when installing these connecting rods?

 Since IE rods are sold in balanced sets this is not required. For extreme performance applications, this can still be done if desired.



How much do these rods weigh?

 The average weight of a single rod with bolts is 574 grams. Rod weights can vary slightly per set.  More technical information can be found in the basic dimensions section above as well.



What is the maximum RPM limit of these rods?

 The maximum RPM limit can be affected by many factors. In this application, we suggest not exceeding 8500 RPM with ARP 2000 bolts. If you plan on exceeding this RPM level, consider upgrading to ARP 625+ bolts.



When should I upgrade to ARP 625+ rod bolts?

 Generally speaking, high RPM conditions put the most stress on rod bolts as the rod and cap are literally being pulled in opposite directions. If you plan on pushing your engine far past factory redline or 8500 RPM  we would suggest upgrading to 625+ ARP bolts.



Do I need rifle drilling?

 Rifle drilling is not required. However, we do strongly recommend it for daily driver and high mileage applications. Rifle drilling has been proven to extend wrist pin and bushing life and has also been utilized over the years in several VW/Audi factory connecting rods.



What is the horsepower rating on these connecting rods?

 Many high horsepower VW and Audi vehicles use IE rods. We rate our 4 cylinder H-beam rods for 700+ HP/ft-lb TQ. If you are planning on exceeding those levels we recommend upgrading to our Tuscan I-beam Rods (part number IERTVA1).



What pistons will these rods work with?

 We stock several high-quality piston options to suit your specific needs and to match our connecting rods. To see what we have to offer be sure to see our piston recommendations section above.



What are the most common reasons for connecting rod failure?

 As one of the highest stressed components in the engine, there are several things that can contribute to a failure. The most common failure is caused by improper installation followed by improper tuning. We recommend that you seek professional help for both installation and tuning. Oiling system health is also essential to ensuring safe engine operation. Momentary oil starvation can result in spun rod bearings and engine failure. In extreme applications also be sure that you are using heavy duty wrist pins. On many of the pistons we offer we either include stout wrist pins or offer them as an upgrade.
