VW & AUDI 1.8T 20V & 2.7T 30V PERFORMANCE VALVES

Push your VW/Audi 1.8T 20V or 2.7T 30V cylinder head to the limits with Supertech Performance engine valves. Supertech combines over 30 years of racing experience with state of the art equipment and manufacturing processes to bring you strong and reliable valve options for your race or street engine build.

LEADING FEATURES

  • Improved airflow via application-specific CNC machining
  • Maximized fatigue resistance and tensile strength
  • Valve tip is hardened beyond 52HRc
  • Strict dimensional tolerances for improved sealing
  • Superfinished to reduce surface roughness
  • Optimized high flow rate designs

WHAT IS A PERFORMANCE VALVE?

Valves play a critical role in any performance orientated engine. Upgrading the valves in your VW or Audi engine increases reliability with slow forging processes, upgraded aerospace alloys, CNC machining, and heat treatments to withstand extreme abuse from high-powered race engines and daily driven road vehicles making beyond factory power levels. The power an engine produces is limited to airflow. As the smallest chokepoint in your cylinder head, performance valves are engineered to increase airflow by limiting turbulence created by valve stem obstruction and careful detailing of the valve head and valve angles.

VALVES SOLD INDIVIDUALLY

Supertech 1.8T 20V (058 & 06A) and 2.7T 30V engine valves are sold individually, add the correct amount of intake and/or exhaust valves in the options you desire before adding to cart.

REQUIRED AMOUNT OF VALVES BY ENGINE:

ALL 1.8T 20V (06A & 058)
12 intake / 8 exhaust*

All 2.7T 30V
18 intake / 12 exhaust*

*Valves are sold individually, be sure to order the correct amount of intake and/or exhaust valves as needed for your engine application.

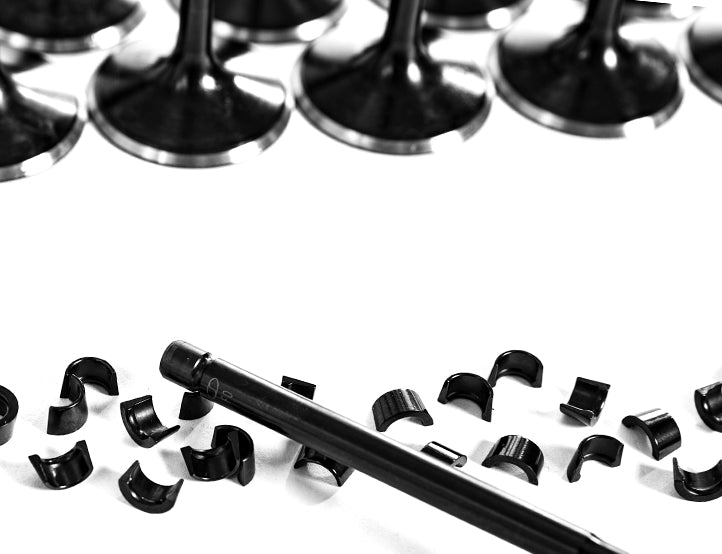

OPTIONAL SINGLE GROOVE VALVE KEEPERS (SOLD INDIVIDUALLY)

Supertech performance valves feature optional “radial-style” single groove on the valve stem and require matching single groove valve keepers. Single groove valves are preferred for performance orientated and race engines as the top part of the groove provides a cushion for the lock and aids in valve stem protection against uncontrolled and excessive valve movement. In addition, the single groove design greatly extends valve stem life by restricting rotation of the valve preventing accelerated wear by excess movement caused by the factory triple groove design. Sold individually, 2 keepers required per valve

REQUIRED AMOUNT OF KEEPERS BY ENGINE:

1.8T 20V
24 keepers required for intake and/or 16 exhaust (40 required for a full engine, intake & exhaust)*

2.7T 30V
36 keepers required for intake and/or 24 exhaust (60 required for a full engine, intake & exhaust)*

*Keepers are sold individually, each valve requires two keepers. Be sure to order the correct amount of valve keepers as needed for your engine application. Triple-groove valves reuse stock keepers.

OVERSIZED VALVE OPTION (REQUIRES MACHINE WORK)

Supertech valves are available in either standard factory size or oversized valve head diameters. Larger diameter (oversized) valve heads provide an increased skirt area, resulting in further increased airflow at lower valve lifts for the maximum cylinder head efficiency at the valve port. Oversized valves require either aftermarket valve seats or machining to the factory valve seats for installation to match the larger diameter head, oversized valves are not a direct installation.

VALVE STEM SEALS

Match your performance valves to a set of IE Performance Valve Stem Seals. Manufactured from heat resistant Viton for use with the exhaust valves and high-quality polyacrylic for intake valves. These superior quality materials ensure longer valve seal life on higher output engines producing beyond stock power levels. Sold individually.

REQUIRED AMOUNT OF VALVE SEALS BY ENGINE:

ALL 1.8T 20V
12 intake seals & 8 exhaust seals*

All 2.7T 30V
18 intake seals & 12 exhaust seals*

*Valve seals are sold individually, be sure to order the correct amount of intake and/or exhaust seals to match your valve purchase.

STAINLESS STEEL VALVES (INTAKE & EXHAUST)

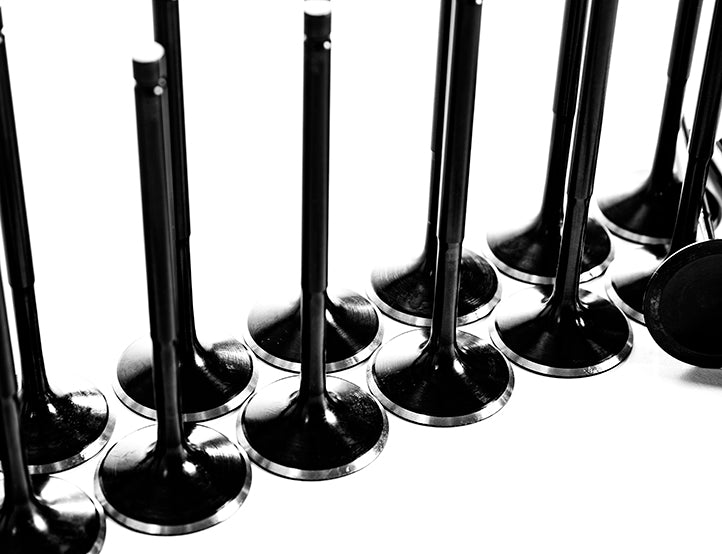

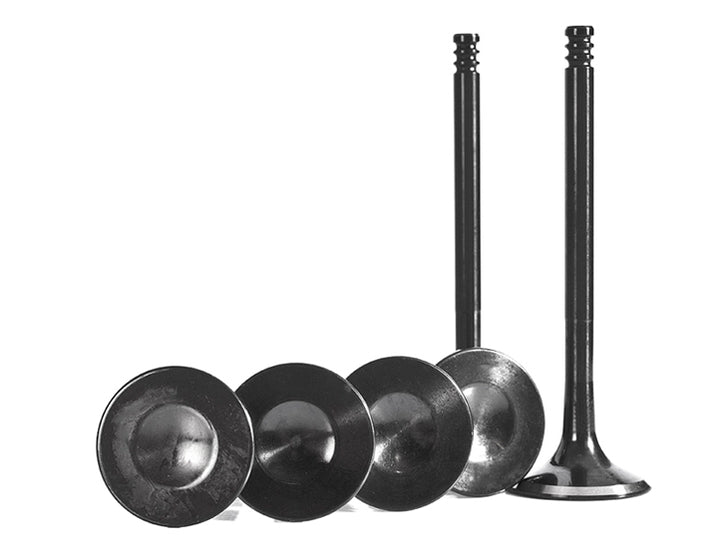

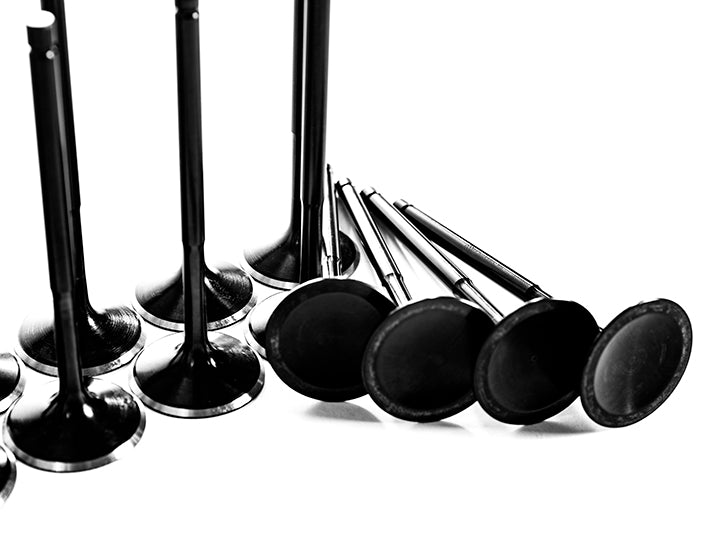

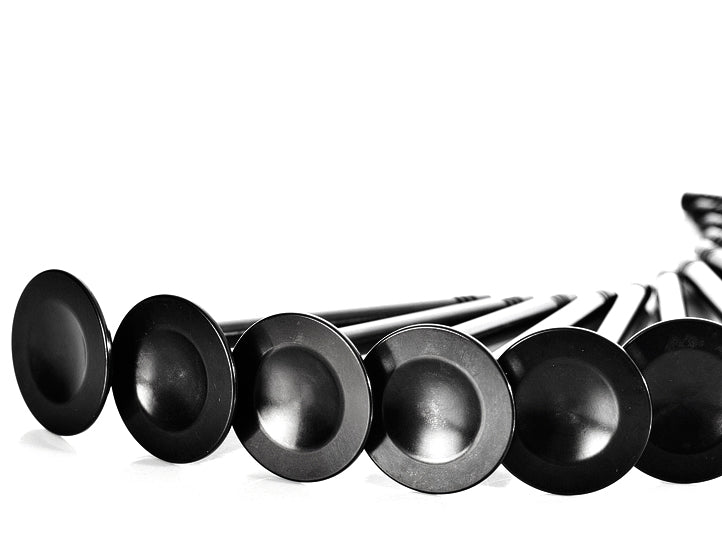

Supertech's intake valves are made exclusively from enhanced EV8 (21-4N) steel. This high-grade steel provides the strength to withstand the abuse from high-powered, high-revving, and turbocharged applications. The stainless steel valve is finished with Black Nitride Coating, a treatment that features harder surfaces and smoother finishes, providing less friction and subsequently longer life.

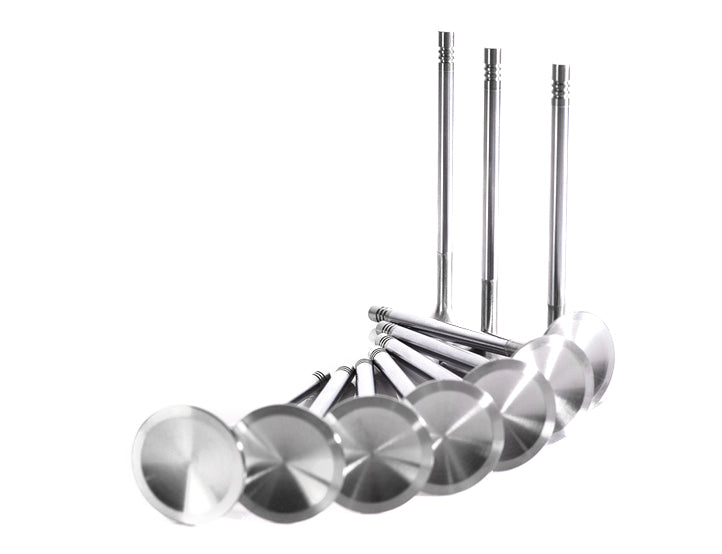

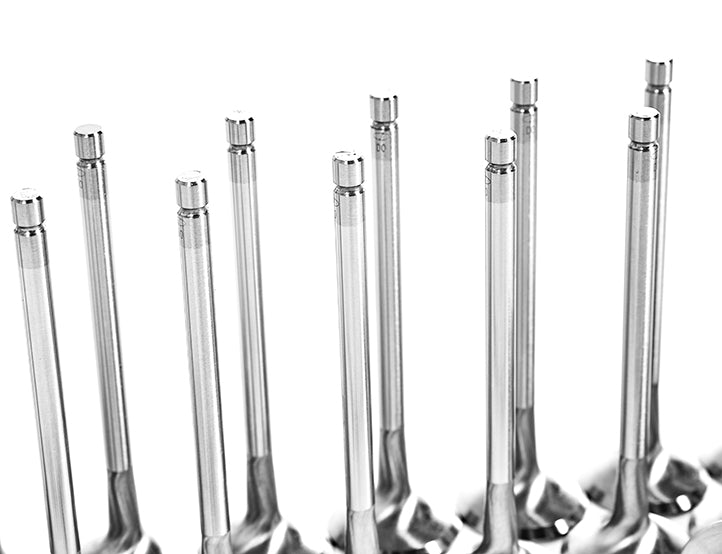

INCONEL VALVES (EXHAUST)

Supertech's Inconel exhaust valves are manufactured from a nickel-based alloy material providing incredible temperature distribution that lowers temperatures across the entire cylinder head. Inconel valves are perfect for engines that reach very high exhaust gas temperatures from large frame turbo engines found in both street and race applications.

VALVE TECHNICAL SPECS

Stainless Steel Intake Valves
Head Diameter: 26.90mm (27.90mm oversize available)
Stem Diameter: 5.96mm
Overall Length: 105.10mm
Single-groove stem requires valve keepers
Triple-groove stem reuses stock valve keepers

Inconel Exhaust Valves
Head Diameter: 29.90mm (30.90mm oversize available)
Stem Diameter: 5.94mm
Overall Length: 103.90mm
Single-groove stem requires valve keepers
Triple-groove stem reuses stock valve keepers

ENGINE FITMENT

  • VW - All 1.8T 20 Valve (06A & 058) Transverse & Longitudinal Engines
  • AUDI - All 1.8T 20 Valve (06A & 058) Transverse & Longitudinal Engines
  • AUDI - All 2.7T 30 Valve Twin Turbo Engines

VEHICLE FITMENT

  • VW - Golf 1999-2005 (MK4) 1.8T 20V
  • VW - GTI 1999-2005 (MK4) 1.8T 20V
  • VW - Passat 1998-2005 (B5 - B5.5)
  • VW - Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V
  • VW - Beetle 1998-2011 (1C - 9C - 1Y) 1.8T 20V
  • AUDI - A4 1996-2001 (B5 - B5.5) 1.8T 20V
  • AUDI - A4 2002-2005 (B6) 1.8T 20V
  • AUDI - A6 1998-2004 (C5) 1.8T 20V
  • AUDI - A6 Allroad 1998-2004 (C5) 1.8T 20V
  • AUDI - TT 2000-2006 (MK1 - 8N) 1.8T 20V
  • AUDI - A3 1996-2003 (MK1 - 8L) 1.8T 20V
  • AUDI - S3 1996-2003 (MK1 - 8L) 1.8T 20V
  • AUDI - S4 1996-2001 (B5 - B5.5) 2.7T engines
  • AUDI - RS4 1999-2000 (B5 - B5.5) 2.7T engines
  • AUDI - A6 1998-2004 (C5) 2.7T engines
  • AUDI - A6 Allroad 1998-2004 (C5) 2.7T engines
