To match and exceed the high-end fit and finish of your flagship Audi C7 RS7, our intake system has been engineered without sacrifices, compromises, or shortcuts. Only the best materials and design features have been chosen to set the benchmark of 4.0TT intakes. Install easy power, torque, and sound that will completely transform your driving experience.
HIGH-GLOSS
CARBON FIBER
CONSTRUCTION
INSTANT POWER
23.5%
FLOW OVER STOCK
FLOW OPTIMIZED
VELOCITY STACK
MOTORSPORT DESIGN
- DESIGN
- INSTALL & FITMENT
- High-gloss true carbon fiber construction
- Integrated carbon velocity stack
- 5.5" engine specific pleated cotton filter
- Full carbon twin inlet pipe
- Factory-style mounting
- Stainless hardware
- Powder-coated aluminum bottom plate
- Multi-ply silicone with stop-flat edges
- Stainless laser-etched logo plate
COMPLETE ASSEMBLY

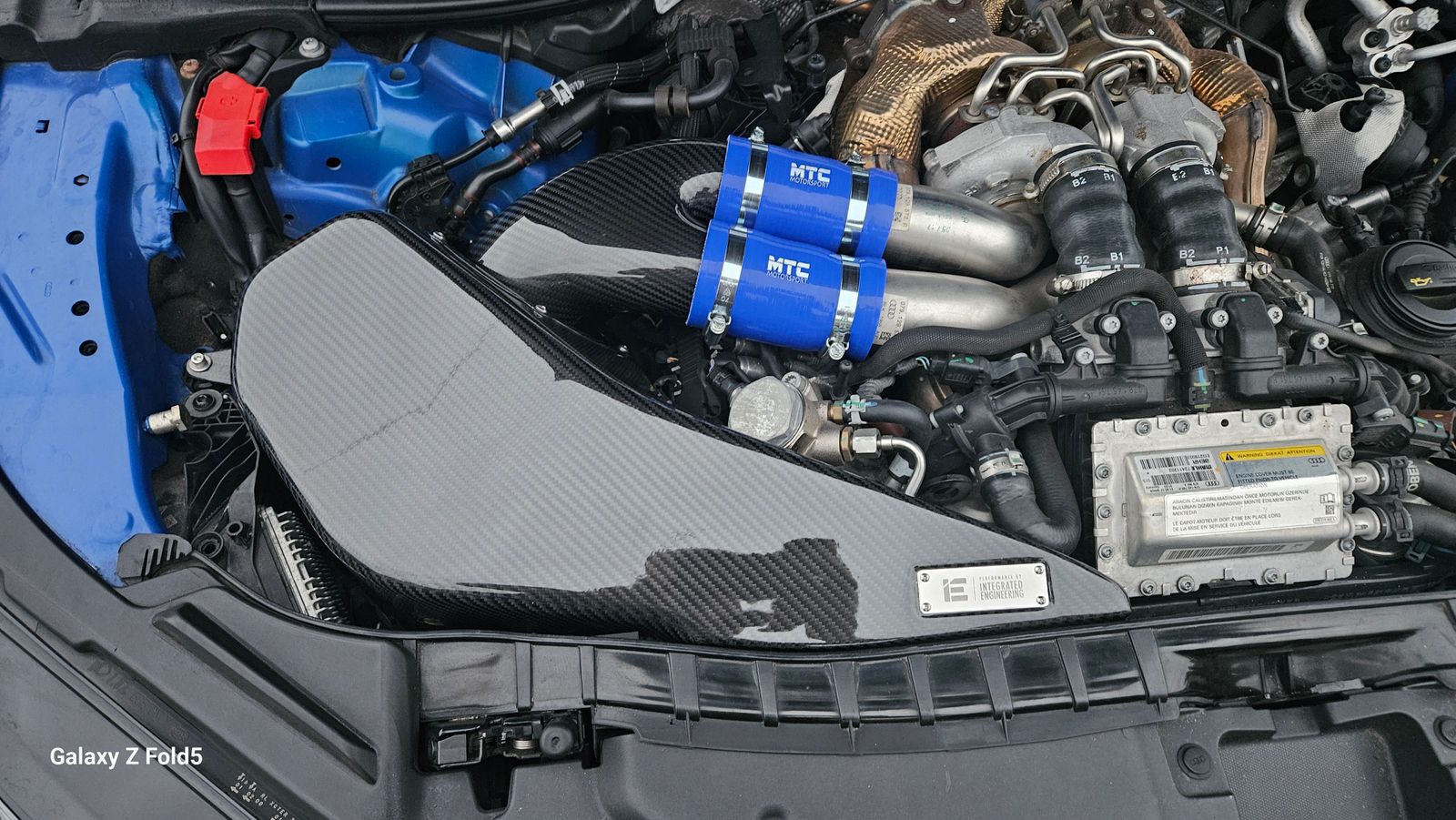

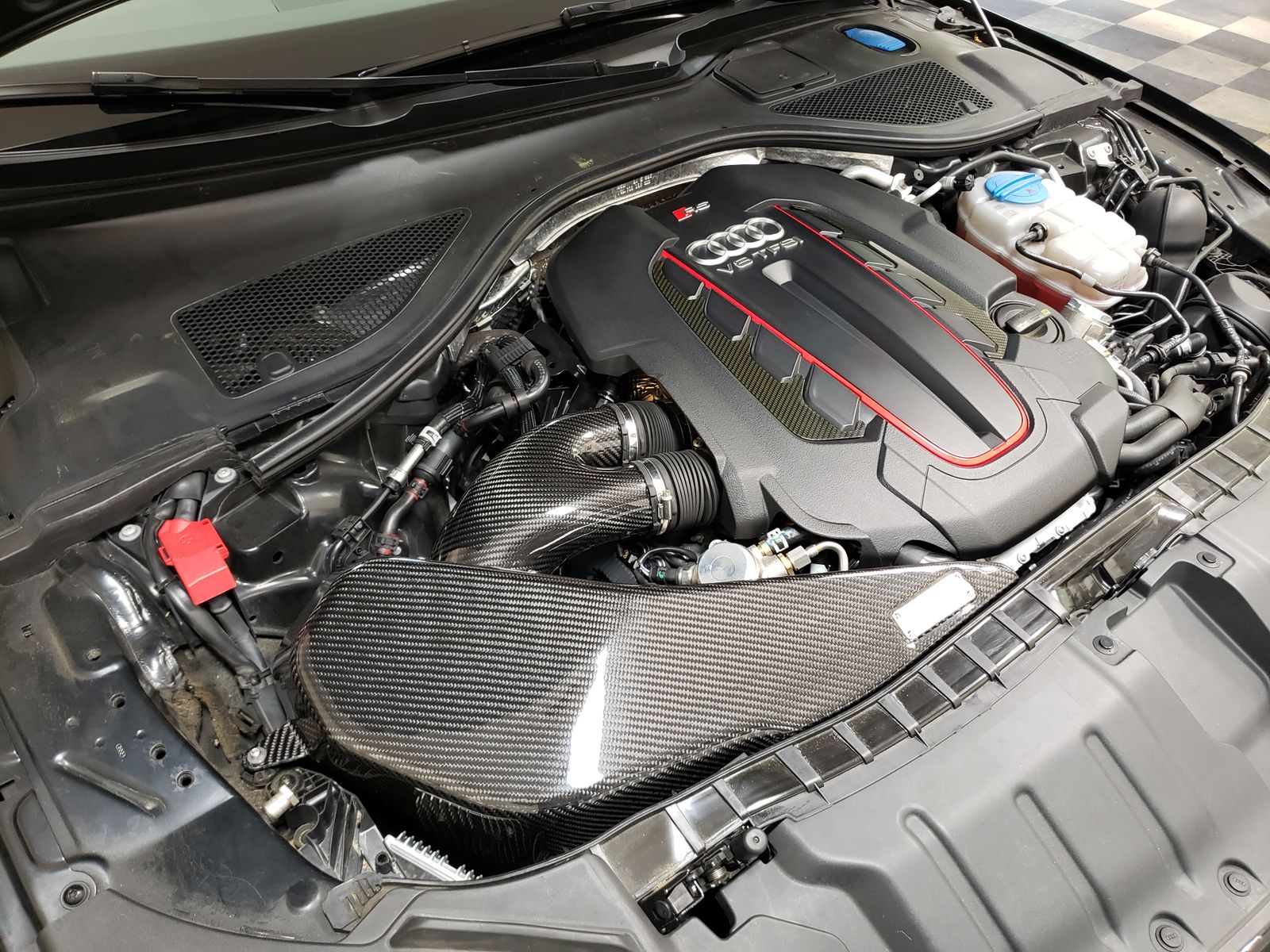

The complete airbox assembly houses our 5.5" high-flow filter, aluminum bottom plate, carbon velocity stack/inlet pipe, stainless hardware, and mounting provisions for a complete bolt-in solution.
CARBON EXCELLENCE
Carbon fiber can be manipulated into almost limitless shapes allowing our engineers to utilize every millimeter of space within the tight factory engine bay. The unique architecture and contours allow for a larger internal volume and smoothed airflow while simultaneously shielding it from radiant engine bay heat.
HIGH-FLOW VELOCITY STACK
In order to gain the highest flow possible, the velocity stack transitions airflow from the large surface area of the air filter and smooths its travel to the inlet pipes. This clean reduction accelerates the airflow into very high inertia while reducing power-robbing drag and turbulence.
UNIQUE SOUND
Upgrading to IE's performance intake system will unleash a symphony of eight-cylinder engine and turbo sound that will make the throttle more addictive than ever. You own a twin turbocharged 4.0L V8 powerhouse -LET IT ROAR!
FLOW TESTING
Flow rate testing is performed to validate the design against the restrictive stock airbox. Using our in-house Superflow bench, the maximum possible flow rate in CFM (cubic feet per minute) is measured in gains over stock at a variety of test pressures (-in. H20). A higher flow reading means the intake system can support increased demands from ECU tunes and turbocharger upgrades.
Flow bench results show the massive flow improvements from our intake system.
| IN/H20 | STOCK CFM | IE CFM | INCREASE |
| -5 | 213 | 263 | 23.5% |
| -10 | 313 | 375 | 19.8% |
| -15 | 388 | 462 | 19.1% |
| -20 | 452 | 534 | 18.1% |
| -25 | 506 | 601 | 18.8% |
| -30 | 562 | 658 | 17.1% |
MULTIPLE PRESSURE ZONES
The front inlet connects to the grill and receives a constant supply of ram air. Additionally, the aluminum bottom plate allows for an endless supply of low-pressure air pulled from beneath the intake. These two avenues ensure the air filter has a complete and unrestricted supply of low-temperature airflow for any power goal.
PRECISION FIT
To ensure a perfect fit, 3D scanning tools are used to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. This provides an incredibly high-resolution environment to reverse engineer and prototype the intake design. This not only allows engineers to take advantage of all available space but also results in a perfect and extremely high-end install.
EASY INSTALLATION
Your new IE intake system installs with factory-style mounts that ensure a perfect fit without any modification or hassles. The process is simple and can be done with basic tools.
Install Time: 1 hour or less
VEHICLE FITMENT GUIDE:
| MAKE | MODEL | YEAR | CHASSIS |
| AUDI | RS7 | 2014-2018 | C7 - C7.5 |
Also for use on C7-C7.5 2012-2018 S6 & S7 with RS7 turbos installed
