IT'S YOUR AUDI, BUT FASTER!

Purchasing an IE 3.0T tune grants you access to flash your own tune, switch octanes, easy upgrades, true launch control, optional exhaust crackle, E40 ethanol, and insanely fast lap times without sacrificing reliability. Whether you're chasing world record times or looking for more fun on your daily drive, IE has your back. With more customers in the 10 second range than any other company, feel confident you're running the best! Take a look at our impressive 10 Second Customer Success Roster!

IT'S YOUR AUDI, BUT FASTER!

Purchasing an IE 3.0T tune grants you access to flash your own tune, switch octanes, easy upgrades, true launch control, optional exhaust crackle, E40 ethanol, and insanely fast lap times without sacrificing reliability. Whether you're chasing world record times or looking for more fun on your daily drive, IE has your back. With more customers in the 10 second range than any other company, feel confident you're running the best! Take a look at our impressive 10 Second Customer Success Roster!

IE Audi 3.0T Performance ECU Tune | Fits B8/B.5 S4. S5, C7 A6, A7, Q5

Rated 4.7 out of 5
Based on 88 reviews

IESOVJ11

Sale price $899.00 Save $0.00
In Stock

Free Ground Shipping!

within the continental USA *Some restrictions apply

IE's performance EA837 ECU calibrations for the Audi B8/B8.5 and C7 3.0T TFSI engines fully release the power potential without sacrificing reliability or comfort. Thousands of street, dyno, and track miles were torture tested to ensure maximum performance without sacrificing safety. Let your S4, S5, A6, A7, or SQ5 put a smile on your face and experience the power and thrills from your new tune as it transforms your car into a supercharged beast!

EASY INSTALL
FLASH AT HOME

TAKES ONLY MINUTES

MULTIPLE STAGES
POWER OPTIONS

FUEL OPTIMIZED

INSTANT FUN
FEATURE PACKED

ENJOY YOUR DRIVE

With more customers in the 10-second quarter mile bracket than any other company, feel confident you're running the best!
Take a look at our impressive 10 Second Customer Success Roster!

LEADING FEATURES

  • Horsepower & torque gains maximized
  • Stock boost control optimized for all conditions
  • 91, 93, 100, & 104 octanes available (95, 98, 104, & 108 RON)
  • E40 ethanol blend available for dual pulley ratios
  • RPM limit raised to 7200RPM (requires DSG tune)
  • Dual pulley RPM limit raised to 7350RPM (requires DSG tune)
  • Optional Exhaust Crackle feature
  • Two-step launch control availible for single & dual pulley
  • Upgraded throttle body support for dual pulley
  • Manual fan control for advanced engine cooling
  • Fuel drain option for easy race gas & ethanol fillups
  • Road speed limiters removed
  • Dual pulley calibrated to accept ported superchargers
  • Optimized air to fuel ratios for maximized CAT safety
  • Engineered for all climates and elevations
  • Direct port OBDII at-home flashing
  • Easy octane switching takes only minutes
  • Upgrade stages to match hardware upgrades
  • Simple on/off feature toggling with POWERlink
  • Read and clear diagnostic/problem codes
  • Easy to use Data-logger

INCREASED RPM

The powerband has been optimized To take advantage of the new boost curve and pulley ratios. The RPM limits are raised in all gears to 7200RPM on stage 1 & stage 2 single pulley tunes and 7350RPM on dual pulley. DSG-equipped cars will shift slightly before the new engine RPM limits.

DSG Tune is required to unlock higher RPM.

SINGLE PULLEY RATIO

Stage 2 single pulley files are calibrated for a smaller press-on supercharger pulley delivering up to 492HP with minimal hardware upgrades. The single pulley ratio is achieved by driving the supercharger faster via the smaller pulley. See below for recommended pulley option:

PULLEY STYLE IE PART NUMBER PULLEY SIZE (MM) FINAL RATIO

Press-fit SC pulley

IEBAVJ1C

57.5

2.8217

Click the ECU STAGES tab above for a complete list of required single pulley hardware

DUAL PULLEY RATIO

Go all out and maximize the full power potential available from the factory supercharger with a stage 2 dual pulley setup. The maximized dual pulley ratio can be achieved by combining the smaller 57.5mm press-fit supercharger pulley with a 188mm crank pulley -or skip to dual pulley in one product with the single 207mm overdrive crank pulley for up to 548HP! See below for recommended pulley options.

PULLEY STYLE IE PART NUMBER PULLEY SIZE (MM) FINAL RATIO

57.5mm SC & 188mm crank pulley combo

IEBAVJ1C & IEBAVJ7

57.5 & 188

3.2695

207mm crank pulley

IEBAVJ6

207mm

3.2753

Click the ECU STAGES tab above for a complete list of required dual pulley hardware

DUAL PULLEY E40 ETHANOL

Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides the tuning potential for a massive horsepower and torque gain over running conventional gasoline and is more readily available (in most states) and less expensive than race gas. The factory fuel system with an upgraded HPFP (high pressure fuel pump) can support a maximum mix of 2/5ths E85 and 3/5ths 91/93 premium gas to produce an E40 ethanol blend delivering up to an intense 548HP & 525ft-lbs of torque!

Read our how-to and safety guide on blending ethanol HERE

OPTIONAL EXHAUST CRACKLE

Give your supercharged engine an aggressive sporty sound. Turning on the exhaust crackle gives your 3.0T a head-turning performance exhaust overrun when you rev, decelerate, or let off the throttle for gear changes.

Optional feature included with stage 2 single and dual pulley tunes. For the most aggressive pops and bangs, aftermarket downpipes or catback exhaust is recommended.

2-STEP LAUNCH CONTROL

2-step is an advanced motorsport ECU calibration feature built into the ECU software. This drag racing style launch will dramatically increase your 60 foot and acceleration off the line by building engine load and boost from a stop providing a large advantage over similarly powered vehicles in a competitive scenario.

Available upgrade for single pulley tunes and included with with dual pulley files.

MANUAL FAN CONTROL

Keeping the supercharger cool in between runs is the key to staying competitive and in optimal power in a drag racing scenario. To help reduce temperatures while staging, IE's optional fan control feature allows you to run the fans and coolant pump at full power on demand using the cruise control stalk. Simply flip the radiator fans to full power to pull heat out of the supercharger and effectively lowering intake air temperatures before the next run.

Currently available for B8.5 and C7.5 (facelift non-CREC) models only.

FUEL DRAIN OPTION

Higher octanes such as 100, 104, and ethanol offer a huge bump in power for race days but can be expensive or hard to mix for everyday driving. To make swapping fuels easier, IE has included a nifty feature that allows you to drain your fuel tank to the last drop. Simply connect a few feet 5/16” fuel hose to the feed line under the engine bay and hit the drain button in the extras menu on the IE POWERlink Flash Wizard software. Available for all ECU stages.

Fuel drain is an advanced racing function, use fuel safe practices anytime you work with fuel or fuel lines.

RELIABILITY

IE's proven software brings track-ready ECU programming to your 3.0T supercharged engine while retaining factory comfort and reliability. Our own tuning technology suite is used to completely reverse-engineer the factory ECU mapping, allowing our software engineers access to realign all safety protocols and sensors for the new performance calibration. Every tune parameter undergoes months of testing on our in-house dyno systems that utilize the world's only Sea Level Generator developed specifically to verify tune operations in any condition. Confidently drive from LA to Pikes Peak with power that will keep you smiling every mile!

CATALYST OPTIMIZED EGT

Even on completely stock cars, the factory catalytic converters (CATs) are a known failure point of the 3.0T platform leading to costly repairs or possible engine damage. IE's pump fuel (91 & 93) files for all stages are specially calibrated with the safest possible air to fuel mixtures to inhibit knocking and to provide cooler exhaust gas temperatures. Going this extra mile adds an additional layer of protection for the fragile catalytic converters not found in many competitor tunes. Race fuel files, launch control, and exhaust crackle features are intended for motorsports use and may reduce catalytic converter safety.



FIVE-STAR SUPPORT

IE's number one goal from purchase to installation is to provide you with the best customer experience in the industry. We want what you want; a simple purchase process, products that exceed expectations, and a brand that's got your back. If at any point you have any questions, need help, or require support with your new tune our educated customer support team and tuning specialists are standing by and happy to help. Purchasing an IE tune not only guarantees a quality product, but that you will always have us in your corner.

Live Fast, Buy Fun

" Awesome power!
-Kyle M.

" Beast mode
-Michael K.

" Best tune for this platform
-Ryan

MAXIMIZED OUTPUT

IE's record-setting 3.0T ECU calibrations are dedicated to perfecting every section of the mapping to deliver a fully realized performance file right out of the gate. Maximized for full power potential on the drag strip and road course while maintaining factory comfort and reliability on your daily commute. Get ready to experience IE's Performance Software for your Audi S4, S5, A6, A7, or SQ5 in only minutes from the comfort of your own home.



POWER GAINS

North American Region (NAR) = AKI / Rest Of World (ROW) = RON

STAGE / FUEL HORSEPOWER TORQUE

Stock Audi advertised numbers

333 HP

325 FT-LBS

Stock IE dyno numbers

329 HP

339 FT-LBS

Stage 1 91 AKI / 95 RON

403 HP

387 FT-LBS

Stage 1 93 AKI / 98 RON

416 HP

391 FT-LBS

Single pulley 91 AKI / 95 RON

422 HP

416 FT-LBS

Single pulley 93 AKI / 98 RON

435 HP

423 FT-LBS

Single pulley 100 AKI / 104 RON

486 HP

443 FT-LBS

Single pulley 104 AKI / 104 RON

492 HP

449 FT-LBS

Dual pulley 91 AKI / 95 RON

444 HP

459 FT-LBS

Dual pulley 93 AKI / 98 RON

453 HP

469 FT-LBS

Dual pulley 100 AKI / 104 RON

511 HP

498 FT-LBS

Dual pulley 104 AKI / 104 RON

519 HP

508 FT-LBS

Dual pulley E40 ethanol blend

534 HP

520 FT-LBS

Dual pulley throttle body 91 AKI / 95 RON

452 HP

462 FT-LBS

Dual pulley throttle body 93 AKI / 98 RON

462 HP

471 FT-LBS

Dual pulley throttle body 100 AKI / 104 RON

521 HP

504 FT-LBS

Dual pulley throttle body 104 AKI / 104 RON

534 HP

513 FT-LBS

Dual pulley throttle body E40 ethanol blend

548 HP

525 FT-LBS

DYNO CHARTS

Dyno numbers are for reference against stock numbers only. Personal dyno results will vary depending on fuel quality, local conditions, dyno brand, and correction factors.

" Torqe is insane
-Mike A.

" I can't beleive how fast it is
-Dylan Y.

" Neck snapping fun!
-Michael M.

HARDWARE GUIDE

STAGE 1 COMPATABILITY

PART UPGRADE COMPATIBLE REQUIREMENT

DSG TUNE OR CLUTCH UPGRADE

COMPATIBLE NOT REQUIRED

AIR INTAKE

COMPATIBLE NOT REQUIRED

HEAT EXCHANGER UPGRADE

COMPATIBLE NOT REQUIRED

SUPERCHARGER PULLEY 57.5MM (PRESS-ON)

X

Not Compatible With Stage 1

CRANK PULLEY 188MM

X

Not Compatible With Stage 1

CRANK PULLEY 207MM

X

Not Compatible With Stage 1

HPFP UPGRADE

X

Not Compatible With Stage 1

THROTTLE BODY UPGRADE

X

Not Compatible With Stage 1

DOWNPIPES

COMPATIBLE NOT REQUIRED

CATBACK

COMPATIBLE NOT REQUIRED

STAGE 2 SINGLE PULLEY

PART UPGRADE COMPATIBLE REQUIREMENT

DSG TUNE OR CLUTCH UPGRADE

HIGHLY RECOMMENDED

AIR INTAKE

HIGHLY RECOMMENDED

HEAT EXCHANGER UPGRADE

HIGHLY RECOMMENDED

SUPERCHARGER PULLEY 57.5MM (PRESS-ON)

REQUIRED

CRANK PULLEY 188MM

X

Not Compatible With single pulley

CRANK PULLEY 207MM

X

Not Compatible With single pulley

HPFP UPGRADE

X

Not Compatible With single pulley

THROTTLE BODY UPGRADE

X

Not Compatible With single pulley

DOWNPIPES

COMPATIBLE NOT REQUIRED

CATBACK

COMPATIBLE NOT REQUIRED

STAGE 2 DUAL PULLEY

PART UPGRADE COMPATIBLE REQUIREMENT

DSG TUNE OR CLUTCH UPGRADE

REQUIRED

AIR INTAKE

REQUIRED

HEAT EXCHANGER UPGRADE

REQUIRED

SUPERCHARGER PULLEY 57.5MM (PRESS-ON)

REQUIRED (OR 207MM CRANK PULLEY)

CRANK PULLEY 188MM

REQUIRED (OR 207MM CRANK PULLEY)

CRANK PULLEY 207MM

COMPATIBLE (Use instead of supercharger & 188mm crank pulley combo)

HPFP UPGRADE

REQUIRED FOR ETHANOL USE

THROTTLE BODY UPGRADE

COMPATIBLE NOT REQUIRED

DOWNPIPES

COMPATIBLE NOT REQUIRED

CATBACK

COMPATIBLE NOT REQUIRED

Dual pulley tune ratio can be acheived by combining press-on supercharger pulley with 188mm crank pulley or with 207mm crank pulley on it's own. IE does not recommend use of 188mm pulley on it's own or combining 207mm crank pulley with upper press-on SC pulley.

UPGRADING STAGES

Upgrading from Stage 1 to Stage 2 or beyond is easy! With IE, you only pay the difference in tune cost with no extra fees. When you install the required matching hardware, simply follow the link on your IE POWERlink software to purchase the tune upgrade and you will be blowing away the competition in minutes!

EASY INSTALL FROM HOME

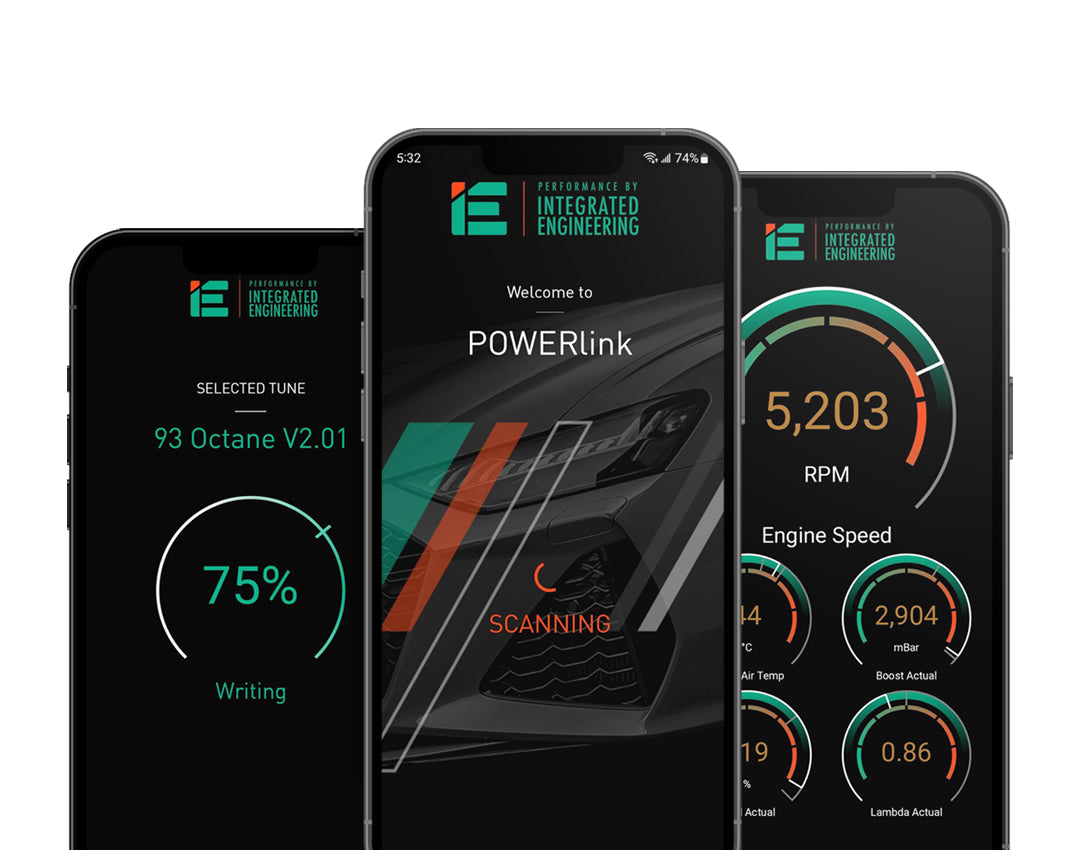

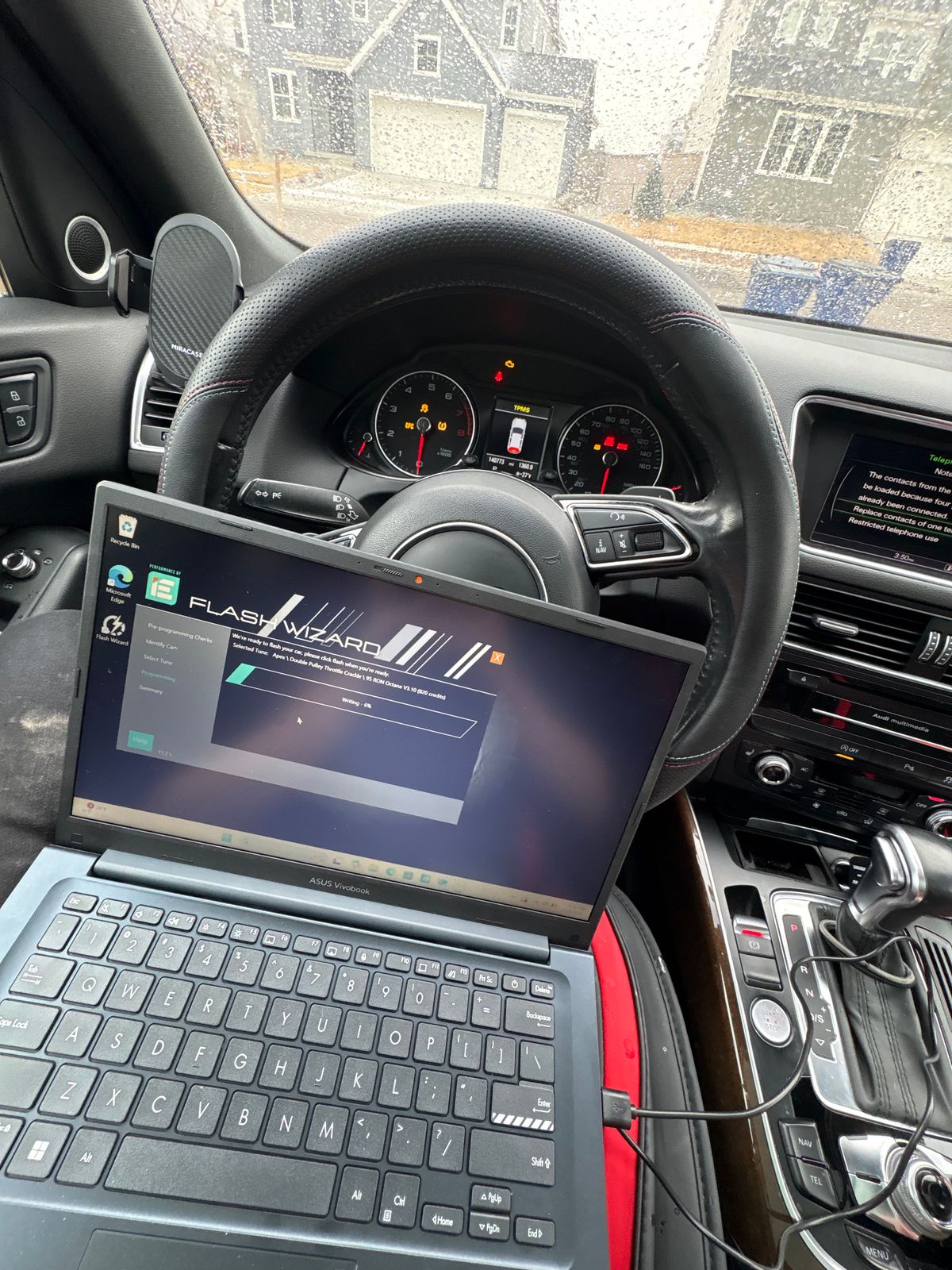

IE's POWERlink Cable and Flash Wizard software gives you the freedom to quickly flash your new IE ECU Tune. Simply plug your POWERlink into the vehicle's OBD-2 port and follow the on-screen directions, it's that easy!

Expand the buttons below for more details on these features

DIRECT PORT

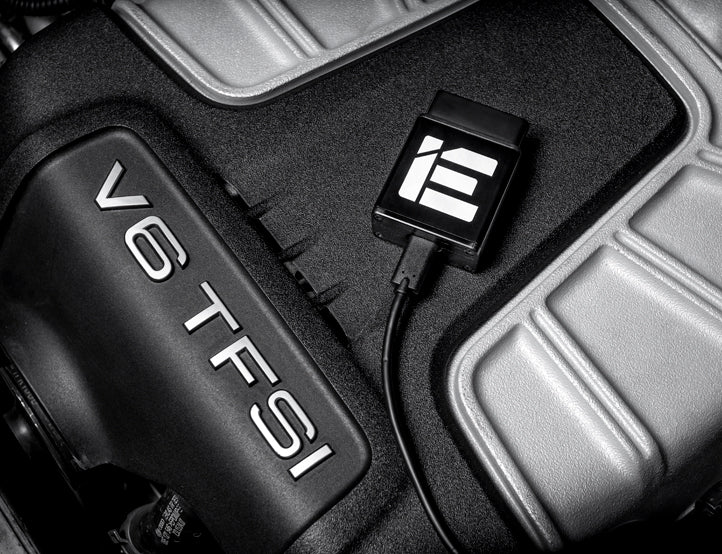

The IE POWERlink is a powerful direct-port tool that plugs directly into your vehicle's OBD-2 terminal. This grants instant access to flash and upgrade tune stages, switch fuel octanes, turn on/off features, flash back to stock, perform engine diagnostics, and record logs with the built-in data logger from the comfort of your own driveway.

OCTANE SWITCHING

All IE 3.0T SUpercharged stages include multiple octane options. Using your IE Powerlink, you can easily switch between calibrations for different fuels and unlock different power levels. Depending on the Stage, choose from 91, 93, 104 and Ethanol octanes.

UPGRADE STAGES

Your POWERlink cable allows you to upgrade stages for matching hardware, switch between them, and flash back to stock as you need. Once you purchase a stage you also own all of its features, octanes, and any stage under it.

TOGGLE FEATURES

Simply plug-your IE POWERlink to quickly turn on optional features such as the included exhaust crackle. The process is the same as adding a tune and can be turned off just as easily.

CODE READER

Pesky check engine light turn on? Save a trip to the shop and use your IE POWERlink to diagnose the problem. The easy to use code reader will pull up any trouble codes and once the issue is fixed, clear the code and get back to the fun.

DATA LOGGER

Verify the healthy operation of your engine using the built-in data logging function. Nothing is better than a piece of mind that your investment is operating optimally. First time data logging? This article will help show you the ropes: How To Data Log

FITMENT GUIDE

MAKE MODEL YEAR ENGINE

AUDI

S4

B8/B8.5 2009-2016

3.0T TFSI Supercharged

AUDI

S5

B8/B8.5 2013-2015

3.0T TFSI Supercharged

AUDI

S5 convertible

B8/B8.5 2008-2015

3.0T TFSI Supercharged

AUDI

SQ5

B8/B8.5/8R 2012-2017

3.0T TFSI Supercharged

AUDI

Q5

B8/B8.5/8R 2008-2017

3.0T TFSI Supercharged

AUDI

A6

C7/C7.5 2012-2016*

3.0T TFSI Supercharged*

AUDI

A7

C7/C7.5 2012-2016*

3.0T TFSI Supercharged*

*2016-2018 A6 & A7 3.0T engines and some late model ROW (non-US) S4/S5 are equipped with a different engine (CREC) and ECU and is not compatible with this IE software suite. Please see our IE 3.0T CREC tunes for these model years. CREC engines are easily identified as the supercharger pulley has 4 bolts to attach it to the supercharger instead of a press-fit style.



" The flash install was super easy
-Jackson

" Extremely user friendly
-Matt R

" You won’t regret it
-Andres

IMPORTANT INFORMATION

TUNE UPDATES
Your tune purchase entitles you to free updates to any tune revisions, new octanes, standard features, or software updates. In the event the original vehicle manufacturer issues an ECU update, this will also be included to you through IE at no additional charge.

POWERLINK VINS
Have multiple cars in the family or friends that are also ready for an IE Tune? Your POWERlink Flash Tool can be used on up to 5 different vehicle VINs. Tunes sold separately.

TUNE REGISTRATION
Once a tune purchase is applied to your vehicle's ECU, the tune is permanently registered to the vehicle and non-transferable to other vehicles. Tunes can be transferred to a second party in the event of vehicle transfer of ownership only.

ROW (REST OF WORLD) SUPPORT
Although IE does offer ROW purchases of software files, some ECUs available only in certain countries or markets may not be supported in our current file library. If you have access to read your ECU code, please contact us to verify compatibility before purchase.

ENGINE SPECS

ENGINE FAMILY

EA837 (SIMOS 8.4)

CYLINDERS

V6

INDUCTION

Supercharged

DISPLACEMENT

3.0L

ORIENTATION

Longitudinal

FUEL

Gasoline (AKI / RON)

AVAILABILITY

North America (NAR) & Rest of World (ROW)

PRICING GUIDE

PRODUCT PRICE

POWERlink Flash Tool

$149.99

IE EA837 Stage 1

$899.00

IE EA837 Stage 2 Single Pulley

+ $100.00 upgrade from Stage 1

IE EA837 Stage 2 Dual Pulley

+ $100.00 upgrade from single pulley

IE B8/B8.5 DSG Trans Tune

$699.00

IE C7 ZF8 TransTune

$699.00

POWERLINK SYSTEM REQUIREMENTS

DEVICE PORTS OS PROC. POWER RAM

Laptop or Tablet

Wifi & USB

Windows 7 or newer

32 or 64 bit

1.0ghz or greater

4GB or greater

DOWNLOADS

FILE SYSTEM SIZE DOWNLOAD

IE Flash Wizard Setup

Windows 7 or newer

799kb

SUPPORT

Having some trouble? Don't worry, our team of tuning specialist are here to help. Fill out the form on our Support Page to start a ticket.

" Customer service is second to none!
-Zach

" Earned a customer for life
-Brenton

" A+++
-Sonny T


average rating 4.7 out of 5
Based on 88 reviews
  • 5 Stars
    76 Reviews
  • 4 Stars
    5 Reviews
  • 3 Stars
    3 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    4 Reviews
92% of reviewers would recommend this product to a friend
Fitment
Rated 5 out of 5
Quality
Rated 4 out of 5
Value
Rated 4 out of 5
Ease of Use
Rated 4 out of 5
Performance
Rated 4 out of 5
Customer photos and videos
88 Reviews
Reviewed by Panos
Verified Reviewer
I recommend this product
Rated 5 out of 5
Review posted

b8.5 s4 dual pulley1

The car its fast and the power its there at anytime you wanted!E40 tune makes the car to go crazy fast!

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
Reviewed by John C.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great performance

This difficult to get set up initially but after a new cable was sent overnight, everything went smooth. The performance improvement is amazing

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 4 out of 5
Ease of Use
Rated 3 out of 5
Performance
Rated 5 out of 5
Was this helpful?
Reviewed by marco g.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

I love it

The car is much faster and a like it .

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
Reviewed by LUCAS F.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Stage 1 SQ5

Love the tune! And support has been great. Asking a few more question about spark plugs.

Live fast, buy fun!

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
Reviewed by Domenick G.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Just Wow.

I installed both the Stage 1 ECU and TCU tune, the car turned into a rocket. The increased power and RPM make a huge difference. I also have the the IE intake and the supercharger really screams now. I ran the car on the stock tune for 2 years, the IE tunes makes the car feel new and really gets the blood pumping again.

Installation took about 10 minutes in total. Highly recommend, money well spent.

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
