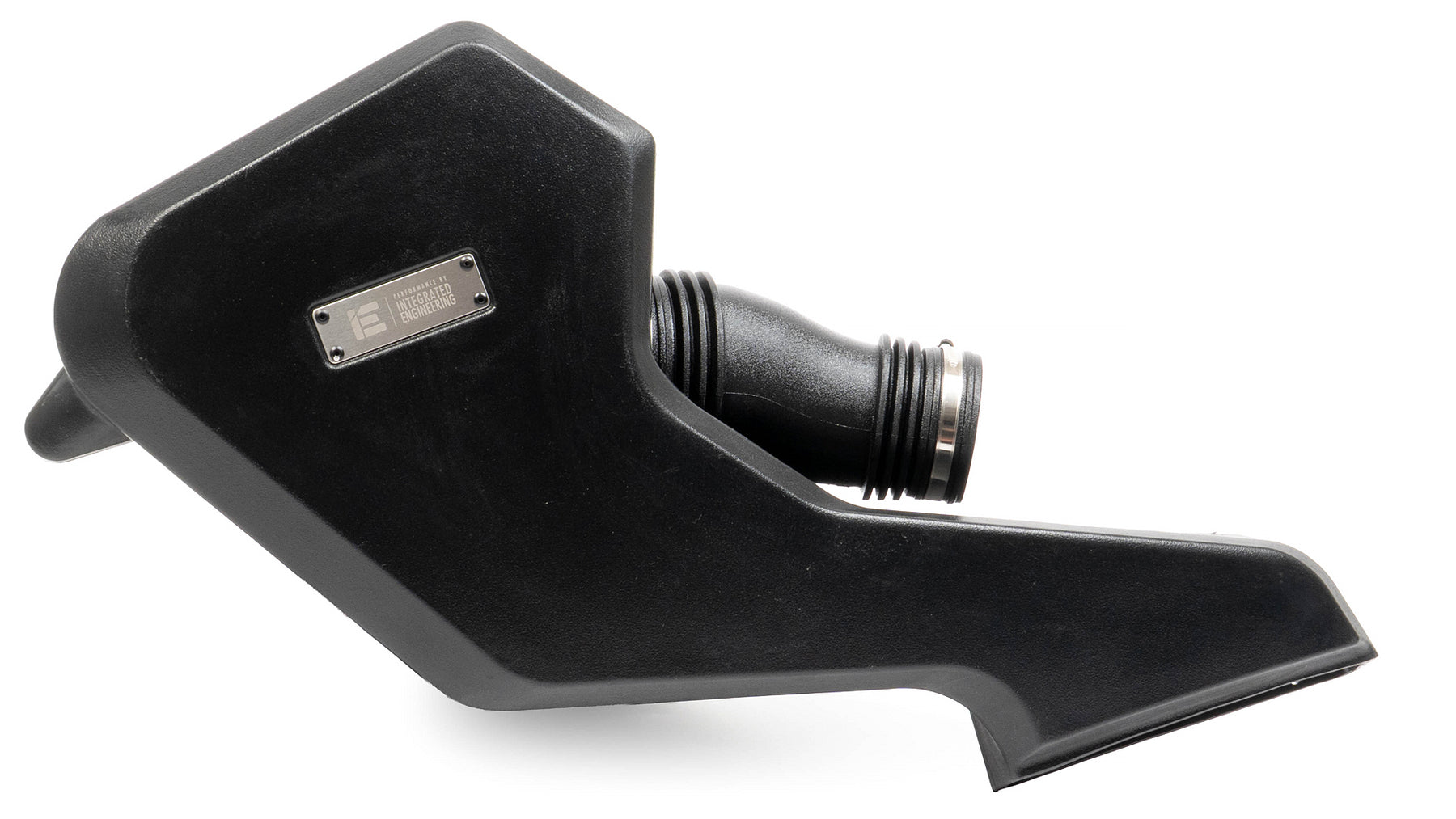

The IE Performance Air Intake System for your Audi B9/B9.5 SQ5 delivers significant airflow gains from a high-quality polymer design. Enjoy increased performance from dramatically improved turbo and engine efficiency while maintaining low intake air temps for up to 19HP & 21ft-lbs on tuned engines. Add instant power, sound, and fun without sacrificing style or quality with our premium air intake system for your S-class V6 turbocharged SUV.

ONE-PIECE
POLYMER

DESIGN

REAL POWER
+19HP & 21TQ

WITH ECU TUNE

INTEGRATED
VELOCITY STACK

HIGH FLOW

LEADING FEATURES

  • Rotomold polymer for superior heat resistance
  • Up to 19HP & 21ft-lbs over stock (with software)
  • Flow 24% more than the factory airbox
  • Flow 50.4% more than stock with IE turbo inlet
  • Increased turbo & engine sounds
  • Maximized turbo & engine efficiency
  • Huge 5" air filter for excellent laminar flow
  • Integrated velocity stack for smooth airflow
  • High pressure & low pressure air zones
  • Designed for stock turbo and hybrids (with IE turbo inlet)
  • Factory style mounts for reliable & easy installation
  • All stainless hardware
  • Multi-ply silicone with stop-flat edges
  • High-quality clamps
  • Powder-coated aluminum filter plate & velocity stack
  • Stainless laser-etched logo plate

ROTOMOLD POLYMER

A special rotational molding method is used to manufacture a robust single-piece intake with consistent wall thickness, strong corners, and superior heat resistance. This also allows for complex shapes and angles to maximize internal volume for air supply and smooth flow for the most performance available. Enjoy a performance air intake without compromise.

SEAMLESS DESIGN

The entire intake is designed as a single piece airbox to offer a seamless and complete look with an above factory quality fit and finish.

BUILT-IN VELOCITY STACK

The built-in velocity stack creates a smooth transition from the large filter area to the turbo inlet. This motorsport design offers excellent laminar properties resulting in a very high inertia flow with reduced drag and power-robbing turbulence.

OPTIONAL TURBO INLET

Our intake airbox is designed to accept our cast turbo inlet pipe to increase airflow over stock from 24% (intake only) up to 50.4% combined! Adding a turbo inlet further reduces significant air restrictions while maintaining the largest size possible from the airbox to the turbocharger.

Turbo inlet pipe is an optional upgrade and can be purchased with your intake or added at a later date.

HYBRID TURBO READY

The intake and turbo inlet combo makes upgrading to a hybrid turbo a simple bolt-in job. CNC-machined and o ring sealed adapter rings fit the stock or a variety of aftermarket turbos without hassle. The turbo inlet continually adapts to the turbo to not introduce any restrictions and maintain the largest size possible when upgrading turbos.

Hybrid turbo adapter rings are sold separately from the turbo inlet upgrade.

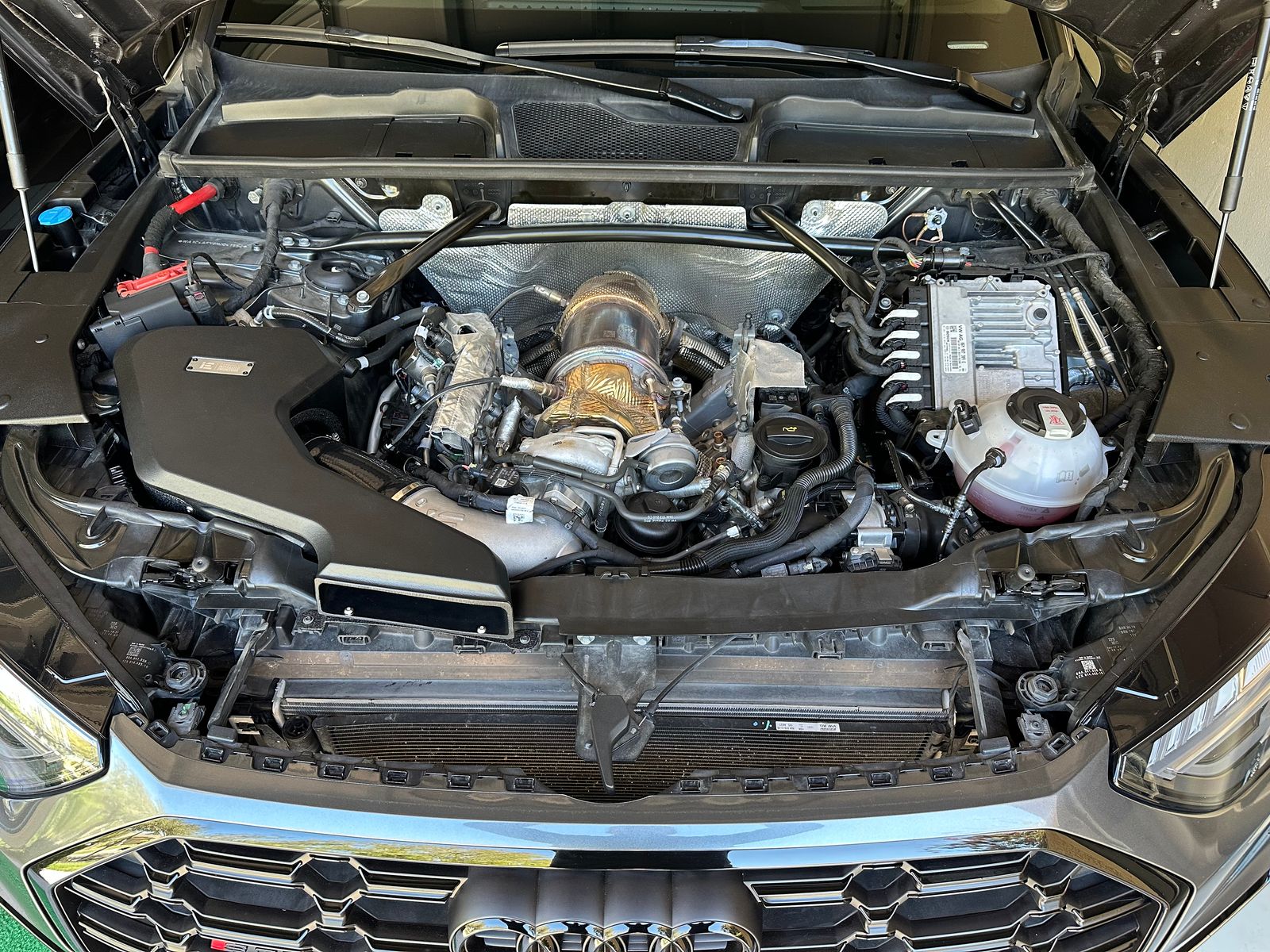

IE SQ5 POLY INTAKE SYSTEM & TURBO INLET PIPE INSTALLED WITH PURE750 TURBO



MULTIPLE PRESSURE ZONES

Multiple air supply avenues are used to guarantee airflow for any power level. High-pressure flow from the grille directly provides a ram air supply to the filter. If additional air demands are required, the intake will pull low-pressure air through the filter plate louvers as needed. This dual-zone design ensures your intake will never be a power limitation for even the most extreme builds.

PERFORMANCE SOUND

Your stock airbox is manufactured under regulations to perform only one job; mute all engine and turbo sound at any performance cost. Your new IE poly intake system will release the sweet sounds of turbo spool, engine throttle, and diverter blow-off that your S-class SUV deserves.

PRECISION DESIGN

3D scanning tools are leveraged to create a high-resolution digital environment allowing our engineers to take advantage of all available space for a complete performance design while ensuring a hassle-free install.

The affordable intake that doesn't skimp on quality or performance.

/ Integrated Engineering.

POWER RESULTS

Every inch of IE's intake system evolved from countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification to maximize airflow and performance. The result is an intake system with power gains of up to 19WHP and 21ft-lbs of torque, with even higher gains possible on hybrid turbo setups!

FLOW BENCH TESTING

The proof is in the testing. Back-to-back flow bench results show constant and consistent CFM gains of up to 50.4% CFM over stock! This increase in flow details the intake design's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.

FLOW REPORT

The following report details the above graph proving the efficiency gain of our performance intake system on the stock turbo.

-IN. H20 STOCK INTAKE IE INTAKE & STOCK INLET IE INTAKE & IE INLET

-5

129 CFM

160 CFM

171 CFM

-10

198 CFM

228 CFM

257 CFM

-15

250 CFM

282 CFM

320 CFM

-20

291 CFM

325 CFM

376 CFM

-25

330 CFM

365 CFM

426 CFM

-30

364 CFM

404 CFM

469 CFM

IE INTAKE & STOCK INLET IE INTAKE & IE INLET

MAXIMUM INCREASE:

+24% @ -5 in. H20

+32.6% @ -5 in/H20

HYBRID TURBO FLOW REPORT

Upgrading to a hybrid turbocharger demands even more airflow. This flow result represent IE’s intake and inlet upgrades with a hybrid turbo.

-IN. H20 STOCK INTAKE IE INTAKE & IE INLET

-5

129 CFM

194 CFM

-10

198 CFM

295 CFM

-15

250 CFM

370 CFM

-20

291 CFM

432 CFM

-25

330 CFM

486 CFM

-30

364 CFM

535 CFM

IE INTAKE & IE INLET

MAXIMUM INCREASE:

+50.4% @ -5 in. H20

The above gains are a result of various design details:

  1. The 5" air filter surface area and increased air volume improve turbo efficiency.

  2. The internal velocity stack provides a low-turbulence transition from the filter to the inlet.

  3. High & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.

To learn more about these features, click the design tab above.

EASY INSTALLATION

Install your new air intake using basic hand tools in no time. Our thermoplastic intake utilizes factory-style mounts that ensure a perfect and hassle-free fit.

Install time: 45 minutes

VEHICLE FITMENT GUIDE

MAKE MODEL YEAR ENGINE

AUDI

SQ5

2018-2024 (B9/B9.5)

3.0T Turbocharged
