Already running a Dual Pulley setup on your Audi 3.0T supercharged engine and looking for more? IE's Throttle Body Upgrade kit removes the final power restriction from the factory equipped supercharger. Release the complete power potential from your factory supercharger with an 80mm throttle body and matching IE software (free upgrade for existing Dual Pulley customers).
LARGER THROTTLE
20% MORE FLOW
OVER STOCK THROTTLE
UP TO
548 HP
ON DUAL PULLEY SETUP
NO DIY WIRING
PLUG & PLAY
HARNESS INCLUDED
LEADING FEATURES
IE's Throttle Body Kit has been engineered for existing Dual Pulley Tuned S4, S4, A6, or A7 (non-CREC) 3.0T Supercharged engines. For Audi 8R/B8 SQ5 & Q5 3.0T, see IE part number: IEINSG2
- Inlcudes cast aluminum and CNC machined adapter
- Includes upgraded 80mm Hemi throttle body
- Includes plug an play throttle harness
- Includes reinforced silicone coupler for IE intake system
- Includes free tune update for existing IE dual pully tunes
- Releases max amount of power from dual pulley setups
- 20% increase in flow over stock throttle body
- Smooth transition from inlet to throttle body
- Same as stock operation
- Direct bolt-in, retains all factory parts and systems
- Port matchable for ported supercharger
- Up to 548 horsepower on dual puilley setups
BOLT-IN INSTALL

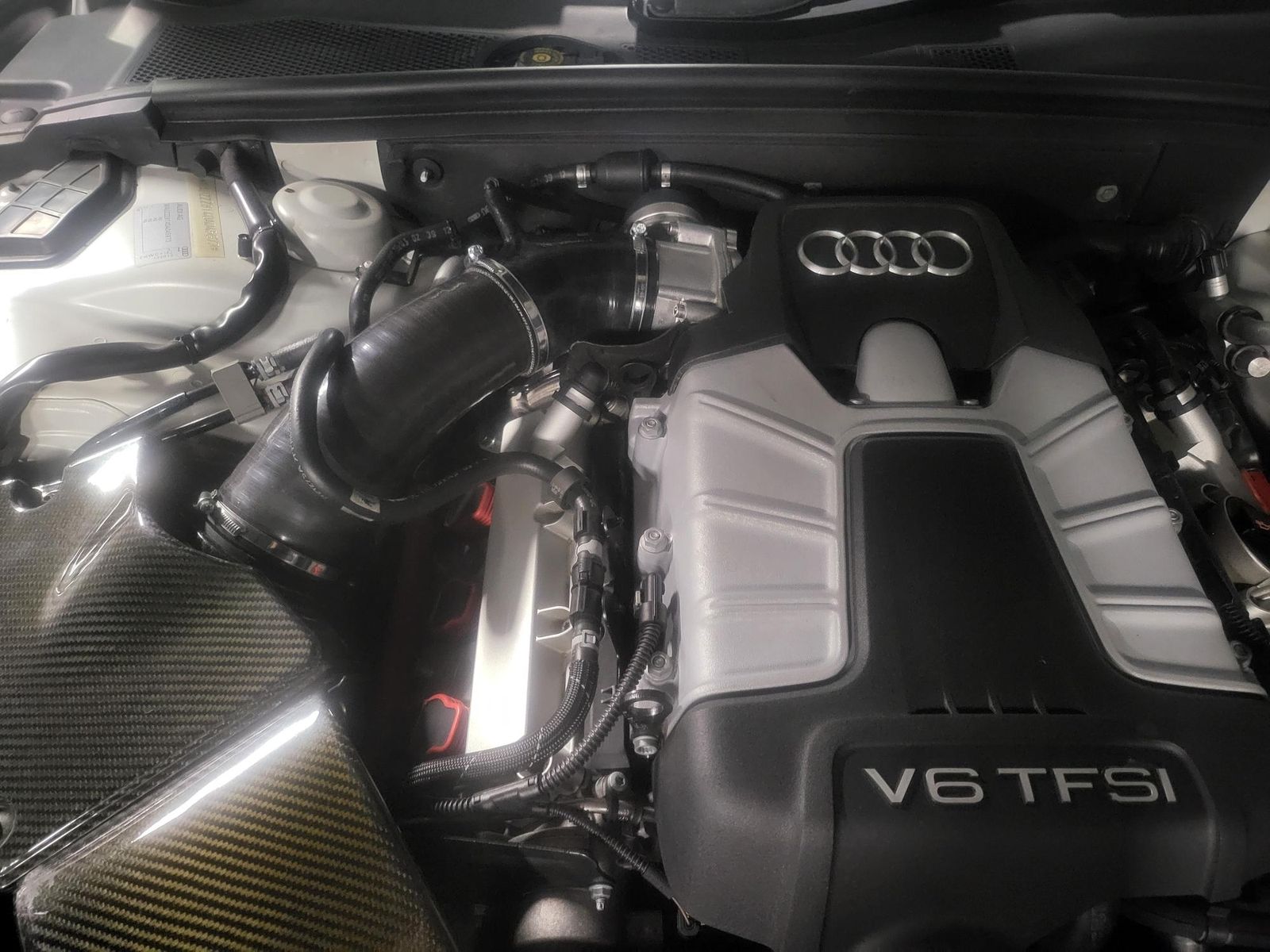

Your new throttle body kit includes a new air intake inlet silicone adapter that is a direct fit to IE's Cold Air Intakes. This creates a perfect high-flow transition from the intake velocity stack directly to the new 80mm throttle body. No modifications or extra adapters required!
IE Cold Air Intake (hard pipe) required for no-modification install
FLOW > SIZE
The larger throttle body is only one part of the equation, simply creating an adapter plate and bolting on a larger throttle body creates abrupt changes and inhibits air flow. The included IE throttle adapter is cast and CNC machined from aerospace quality aluminum creating a smooth transition from the larger throttle body to the supercharger inlet.
Before the design phase, engineers performed flow bench and power tests of multiple throttle body sizes to determine the best throttle body size to include in our kit. This is a delicate balance. While easier to fit, smaller throttle bodies do not completely open up the factory restriction while larger 90mm throttle bodies resulted in no extra power gains. The included 80mm throttle body offers the most power available from a size standpoint when upgrading your throttle body.
FLOW RESULTS
Your factory-installed throttle body has a smaller inlet than the supercharger that functions perfectly fine on stock power levels. However, on higher power setups running dual pulleys, heat exchangers, higher octanes, and Stage 2 Dual Pulley ECU calibrations this small restriction becomes a major dam for airflow unable to keep up with aftermarket performance parts requesting more flow. By increasing the size of the throttle body with our smooth transition cast-aluminum adapter the supercharger can fully breathe to its utmost capability.
STOCK THROTTLE IS ROBBING YOUR POWER
STOCK OPERATION
Your car will be up and running in no time, by simply flashing the Throttle Body Upgrade software and plugging in the new throttle body with the included extension harness. There are no electrical trick boxes or funky harnesses to give you issues.
FREE ECU TUNE CALIBRATION
Throttle body upgrades require matching ECU software to run and perform correctly. IE's Throttle Body ECU Tune is available as a free upgrade for all existing IE Stage 2 Dual Pulley owners. Don't already own IE Dual Pulley? The Throttle Body update is also included with all Dual Pulley tunes when purchased at no additional cost.
Requires existing IE Stage 2 Dual Pulley Tune
VEHICLE GUIDE
| MAKE | MODEL | YEAR | ENGINE |
|
AUDI |
S4 |
2009-2016 (B8-B8.5) |
3.0TFSI SC |
|
AUDI |
S5 |
2013-2015 (B8.5) |
3.0TFSI SC |
|
AUDI |
S5 Convertible |
2008-2015 (B8.5) |
3.0TFSI SC |
|
AUDI |
A6 |
2010-2016 (C7) |
3.0TFSI non-CREC |
|
AUDI |
A7 |
2010-2016 (C7) |
3.0TFSI non-CREC |
