STAGE 3 HARDWARE GUIDE
| Fuel | Required Upgrades |
|---|---|
| 91 / 93 Octane |
|
THE SPECS:
Max Power Capability:
424 HP | 424 ft-lbs TQ
Compressor Wheel:
Billet 49/60 mm Designed for maximum efficiency and flow
Turbine Wheel:
53/50 mm High-flow turbine wheel reduces back pressure for top-end power
Housings Design:
Direct bolt-on IS38-based precision machined compressor and turbine housings

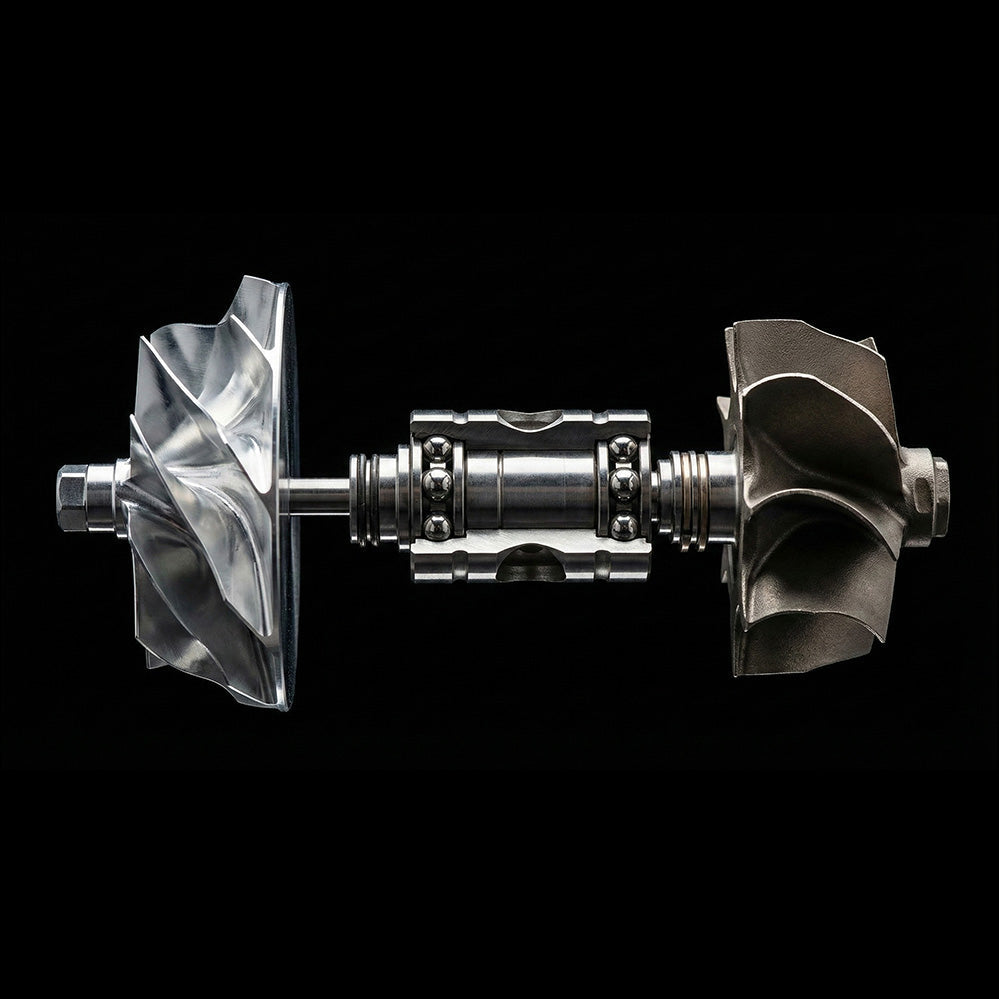

Center Section:
Dual ceramic ball bearing (Virtually indestructible)

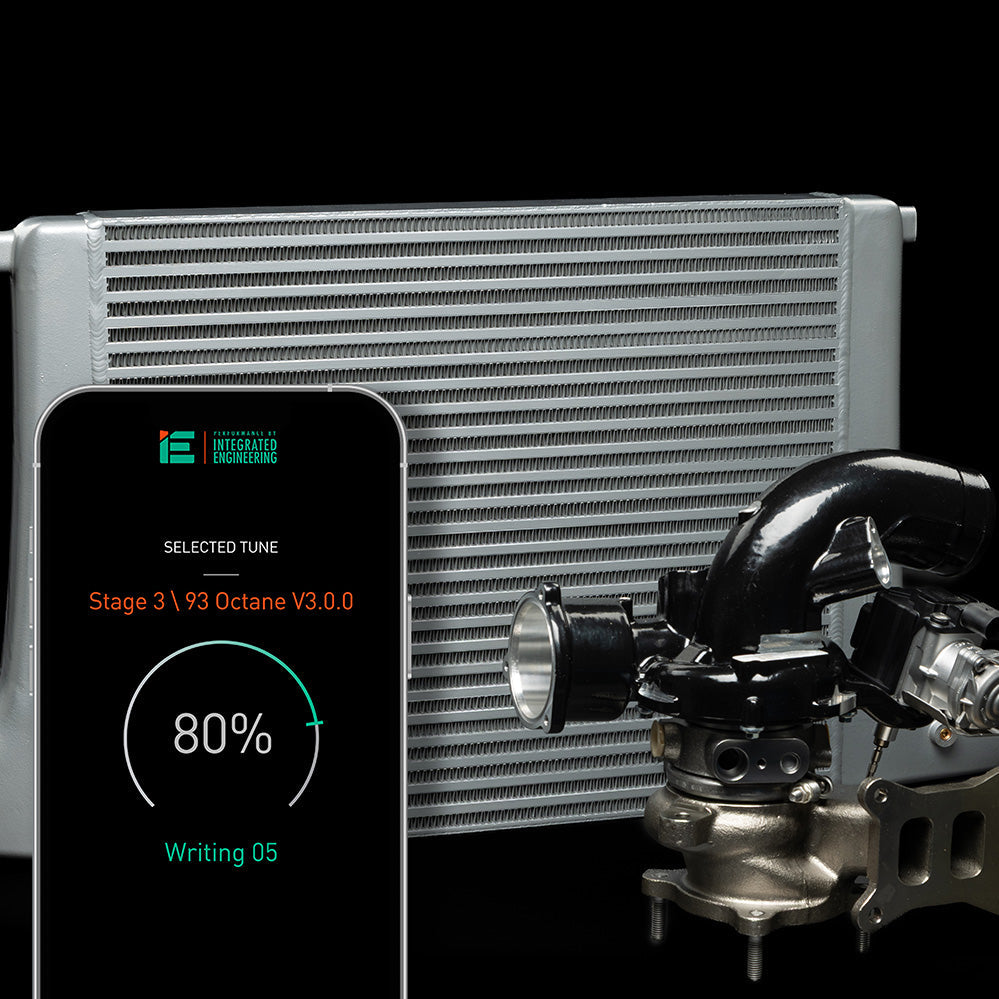

Software:
iE Apex Tier, Stage 3 Map Pack, and Stage 3 TCU Tune required
Hardware:
High-flow Intake, intercooler, 5 Bar Map Sensors, & Vw Golf R injector upgrade required
FAQs
Is this a direct bolt-on replacement?
Yes. The turbo is designed to fit in the factory location and retains all OEM plumbing and mounting points. Requires matching software.
What is the power gain with this hybrid turbo?
When installed with the required hardware upgrades and iE Stage 3 engine & transmission tuning, this bolt-in turbo upgrade produces up to 424 horsepower and 424 ft-lbs of torque!
What other parts are required for this B9 A4 Turbo Upgrade?
iE B9 A4 Apex Tier, Stage 3 Map Pack Engine Tune and Stage 3 TCU Tune are mandatory to run this turbo safely and correctly on your Longitudinal EA888 Gen 3. For hardware, you will need an upgraded air intake, 5 bar map sensors, intercooler, and VW Golf R injector upgrade (X4 injectors VW PN: 06K906036N and X4 injector clips VW PN: 06J133036F).
See iE Stage 3 Map Pack for more info.re.
How does this compare to the TTE440L?
The hybrid features a larger internal compressor, turbine wheels, and compressor and turbine housings, allowing it to move significantly more air and create higher boost pressures over the stock OEM turbo.
What is the difference between this and a stock turbo?
The hybrid features larger internal compressor and turbine wheels and larger compressor and turbine housings. This allows it to move significantly more air and create higher boost pressures.
Does this work on the Longitudinal EA888.3B FWD “Ultra” Models?
It may, but if that's your intended purpose, please - don't buy this from us. We have not confirmed the fitment on the A4 / A5 FWD “Ultra” cars and do not provide software support for them - if you buy this from us for this purpose, we can't offer you support.
