LEADING FEATURES

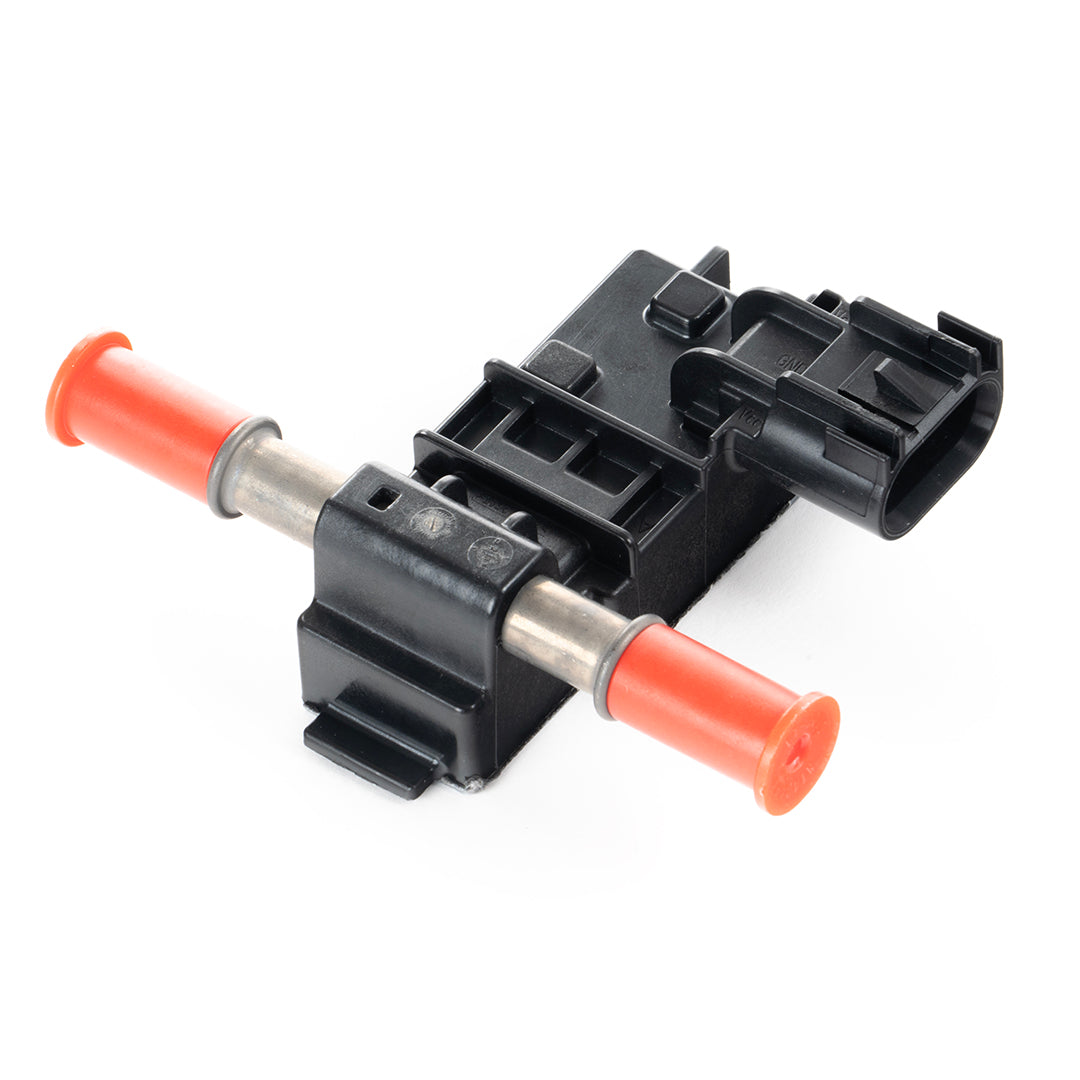

- Ethanol sensor kit for iE B9/B9.5 2.0T TrueFlex Tunes

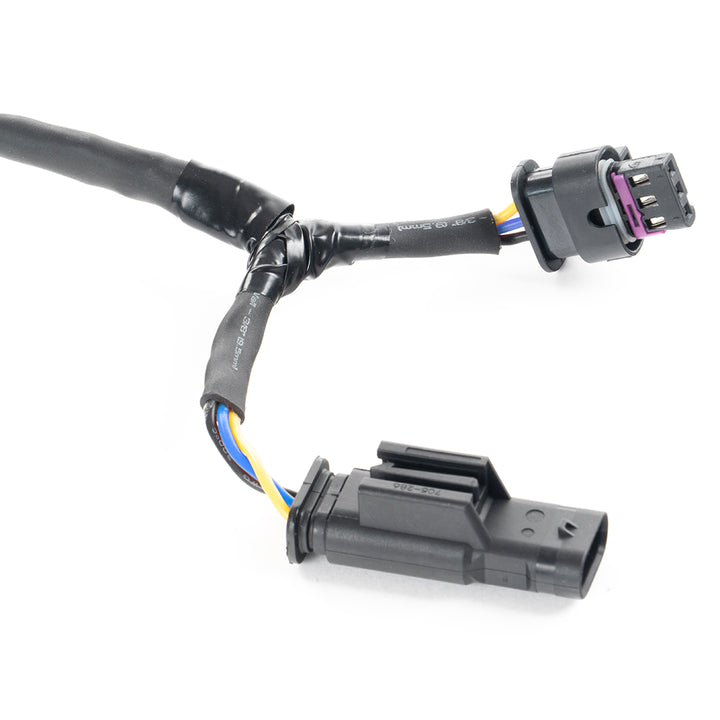

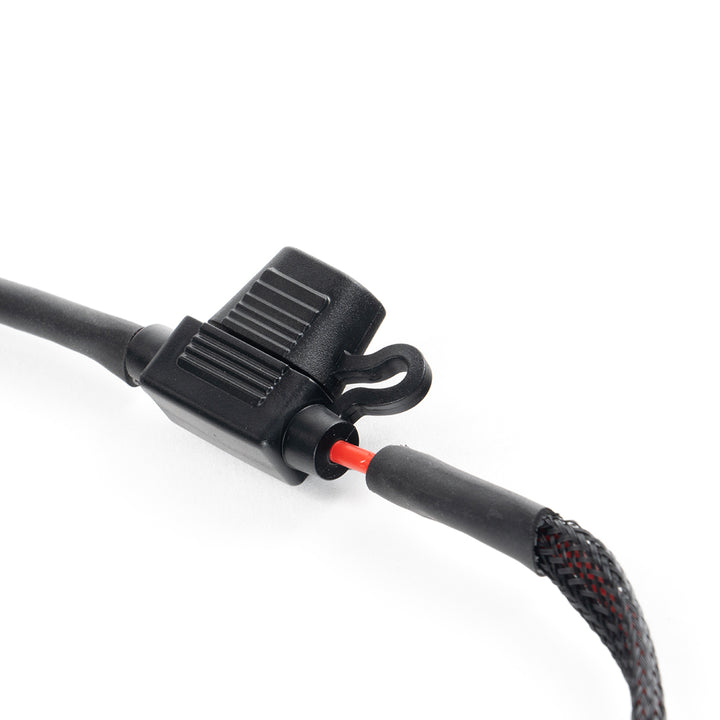

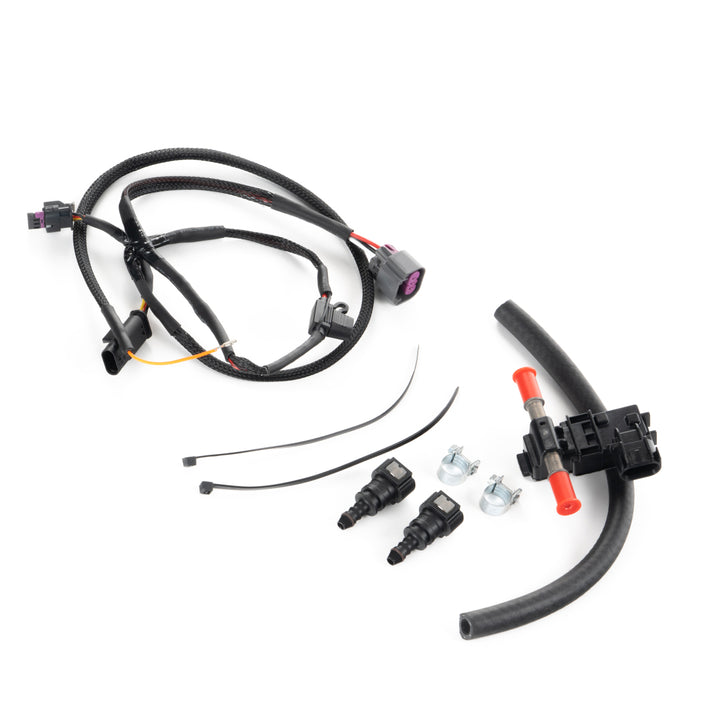

- Complete sensor and sensor harness kit
- Reliable real-time ethanol content readings
- Run premium 91/93 up to E85 on one tune
EFFORTLESS ETHANOL
Ethanol is rocket fuel for your B9 A4, A5, or Q5. Our iE TrueFlex Sensor Kit is the required harness upgrade to convert your 2.0T engine to flex-fuel. The sensor hardware allows your factory engine computer to read and instantly send the ethanol content of your fuel to our advanced TrueFlex tune, unleashing huge power.
INSTALLATION
Follow our step-by-step guide to install the sensor kit and required OEM hardware upgrades, and then flash the TrueFlex tune with your PowerLink app. Fill up with either premium unleaded, E85, or any mix in between and enjoy maximum performance. You can monitor your ethanol content right on the app.
TRUELFEX REQUIREMENTS
Ethanol is a high-octane fuel that boosts power and knock resistance but requires increased fuel delivery due to its faster burn rate. The B9 2.0T’s high-pressure fuel pump (HPFP) is laser-welded shut and non-upgradable. By swapping the stock HPFP with a VW MK7 2.0T vacuum pump housing and HPFP, you can upgrade to the iE HPFP MQB Internal Performance Kit, which ensures the necessary fuel delivery for ethanol power.
- iE TrueFlex Sensor Harness Kit
- iE B9/B9.5 2.0T POWERlink Tuning Suite
- iE MK7 upgraded HPFP Internal Kit
- OEM MQB HPFP (PN: 06L 127 027 C)
- OEM vacuum Pump Housing (PN: 06L 145 100 N)
- OEM vacuum Pump Gasket (PN: 06H 103 121 J)
- (2x) OEM HPFP Bolts (PN: N 911 287 01)
- (3x) OEM vacuum Pump Bolts (PN: N 107 394 01)
Note: iE does not offer OEM part numbers; these must be sourced from your local dealership or online factory parts retailers.
FITMENT DETAILS
-TrueFlex tuning is compatible with 2017-2020 2.0T model years only and is incompatible with the new 2021+ ECU variations.
-Compatible with Quattro (AWD) models only and is incompatible with front-wheel-drive (FWD) vehicles.
-TrueFlex tuning is available for North American models and is not currently supported for Rest-of-world (ROW) ECUs (Europe, Asia, Australia, etc.).
