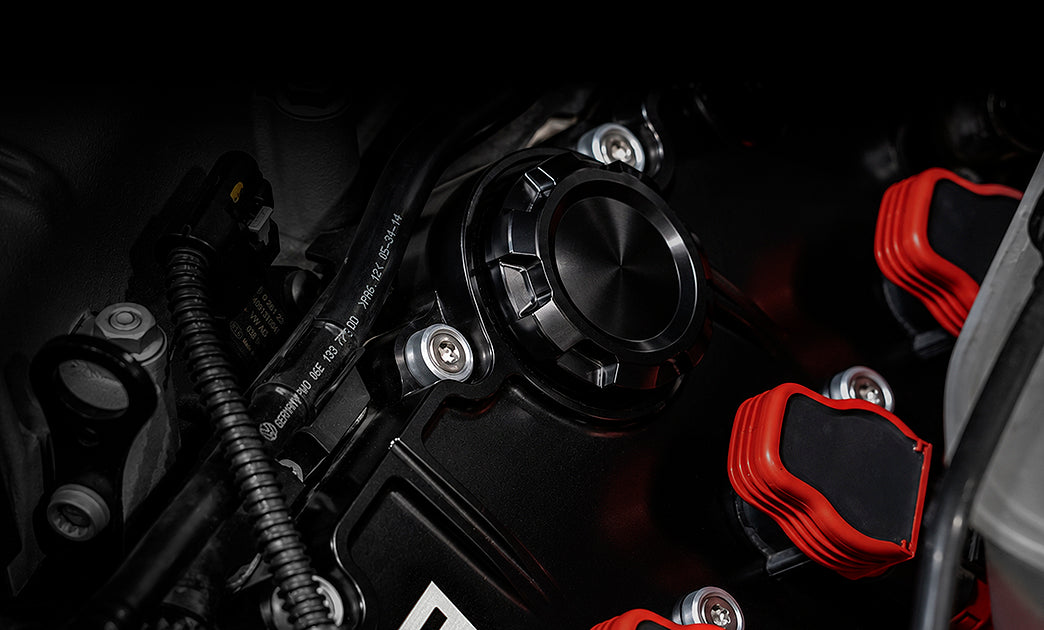

THE FINISHING TOUCH

Your iE billet valve covers are the centerpiece of your engine bay, and deserve hardware that looks just as refined. This complete bolt kit completes the look with premium matching hardware and reusable o-ring seals to keep future maintenance simple.

THE FINISHING TOUCH

SMART MAINTENANCE

Factory bolts use single-use gaskets... remove one and you're forced to replace the entire bolt kit just for that one seal. iE's Valve Cover Bolts feature reusable o-rings that can be removed, reinstalled, and serviced without pricey dealer trips.

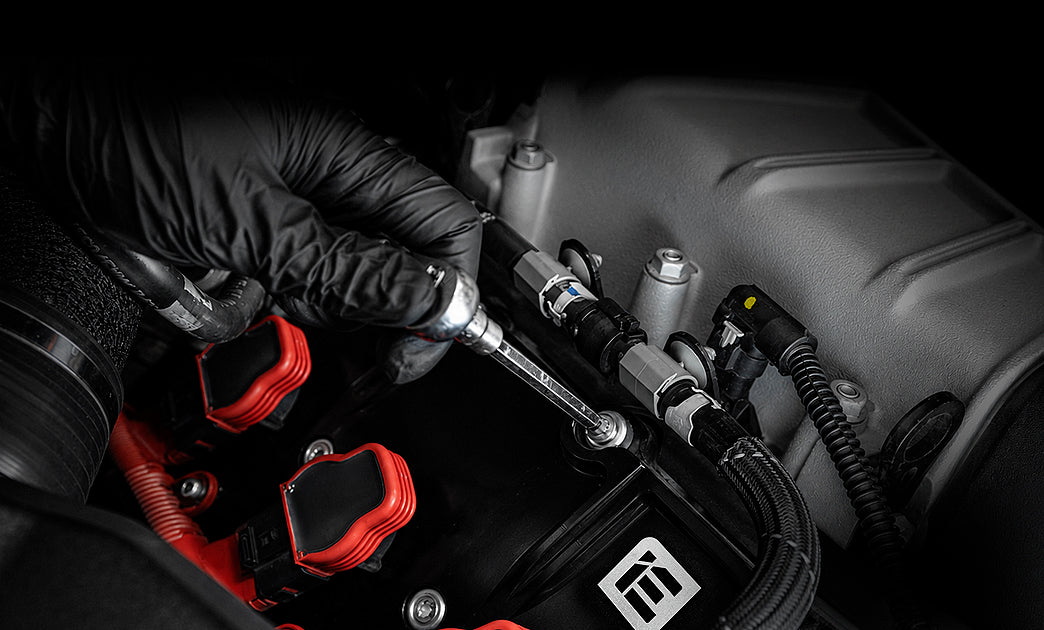

HARDWARE DONE RIGHT

Cheap bolts round off, strip threads, corrode and cheapen the looks of your iE Valve Covers. We built ours with premium alloys designed to withstand underhood heat, grime, and moisture so it looks as good in five years as it does on day one.

HARDWARE DONE RIGHT

Tech Specs

Specification Details
Fitment
  • -
  • iE Aluminum Valve Covers & Stock Valve Covers For Audi 3.0T Supercharged Engines
Bolt Count
  • -
  • Includes 24 Bolt Assemblies
Bolt Spec
  • -
  • M6x1.0 Stainless Steel Flat Head Cap Bolt (T30 Torx)
O-Ring Spec
  • _
  • 14mm ODx1.5mm Viton O-Ring

INSTALL GUIDE

Difficulty

photosEasy

Time

photos Around 1 hours

Enjoy a quick and hassle-free DIY install. Basic hand tools are all that is needed for this one. You got this.

WE GOT YOU

Have questions about tuning your Audi with iE? Our in-house team of Mod Gurus are serious motorheads with big brains and the know-how to steer you right.

Let’s Connect

COMPATIBILITY

YEAR MAKE MODEL ENGINE DRIVE
2009-2018 Audi A6 3.0T AWD
2012-2018 Audi A7 3.0T AWD
2011-2018 Audi A8 3.0T AWD
2010-2016 Audi S4 3.0T AWD
2013-2017 Audi S5 3.0T AWD
2013-2017 Audi Q5 3.0T AWD
2011-2019 Audi Q7 3.0T AWD
2014-2017 Audi SQ5 3.0T AWD

FAQs

I lost a factory bolt while installing my valve covers, is this the fix?

Yes. With 24 valve cover bolts, it’s not uncommon for one to disappear during an install or engine build. Instead of purchasing an entire new OEM bolt kit to replace a single missing bolt, the iE Valve Cover Bolt Kit replaces them all with great-looking and easily serviceable hardware.

Why not reuse my factory bolts?

You can absolutely use new factory bolts when installing your iE Aluminum Valve Covers. However, the factory bolt gaskets are single-use, and Audi only sells the bolts and gaskets as a complete kit. You can not purchase individual bolt or gasket factory replacements.

Does this include the valve cover gasket?

No. This kit includes the valve cover bolt hardware only. iE Aluminum Valve Cover upgrades include the required main valve cover gaskets with purchase.

I lost an iE bolt. Can I replace just one?

Yes! If you lose or damage one of the bolts, there’s no need to purchase another complete kit. Simply replace it with a standard stainless steel M6 x 1.0 cap-head screw with a T30 drive.

I lost an O-ring. Can I replace just one?

Yes! If you lose or damage one of the O-rings, it can be replaced individually. Use a chemical-resistant Viton O-ring with a 14 mm outer diameter and 1.0 mm cross-section.

Can I use these with stock valve covers?

Yes. These bolts were designed to visually match and complete the look of our iE Aluminum Valve Covers, but they’re fully compatible with your factory valve covers as well. It’s an easy way to add a cleaner, more premium hardware finish while gaining reusable, serviceable O-ring seals.
