Inject some adrenaline and excitement into your right foot by adding serious power to your 2015-2021 VW Golf R or Audi S3. In only minutes from your own phone, you can unleash your engine's performance Get ready to blow away the competition and transform your peppy 2.0T into a powerhouse monster!
APPLE & ANDROID
MOBILE APP
BLUETOOTH TUNING
UP TO
490HP & 493TQ
POWER YOU CAN FEEL
INCLUDES
FUEL OPTIMIZED
91, 93, 104, & ETHANOL
- STAGE 1 & 2
- STAGE 3 GT2260S
- TRUEFLEX ETHANOL
- PERFORMANCE
- INSTALL & SUPPORT
LEADING FEATURES
- Horsepower & torque gains maximized
- Includes Apple & Android Mobile Flashing
- Stock boost control optimized for all conditions
- 91, 93, & 104 pump octanes available (95, 98, & 108 RON)
- Optional TrueFlex adapts from 91 pump all the way to full E85
- Includes optional High Torque & Low Torque files
- Rev limiter increased to 7000 RPM (with DSG flash)

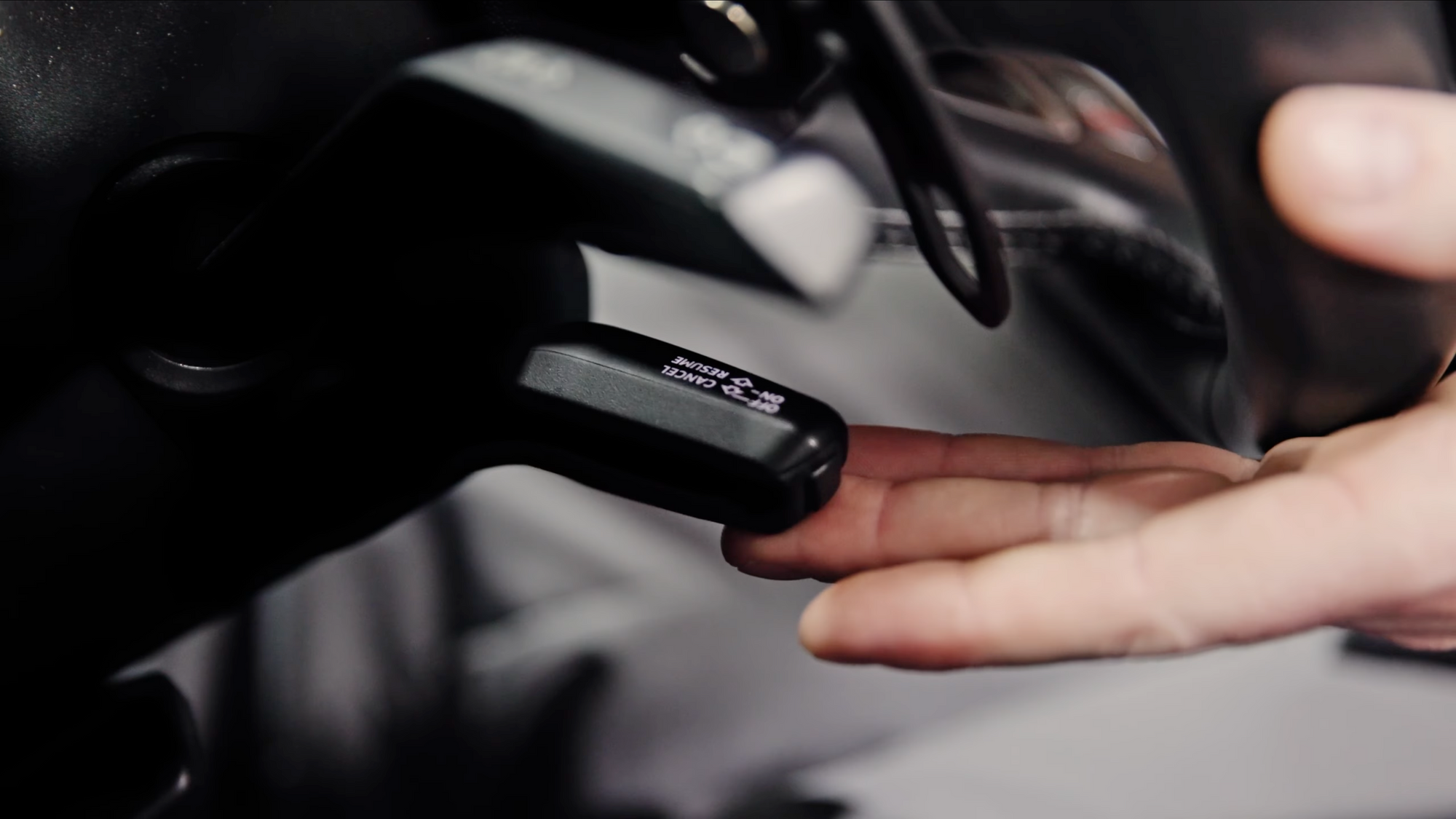

- Launch control torque increased for faster launches
- Brake boosting enabled for rolling launches
- Road speed limiters removed
- Exhaust Crackle feature available for Stage 2
- Engineered for all climates and elevations
- Direct port OBDII at-home flashing
- Easy octane switching takes only minutes
- Upgrade stages to match hardware upgrades
- Simple on/off feature toggling with POWERlink
- Read and clear diagnostic/problem codes
- Easy to use Data-logger
MK7 IS38 STAGE 1
IE Stage 1 ECU calibration dramatically increases performance leaving no hidden power on the table, and safely maxes out the factory turbocharger's horsepower & torque capability. Engineered to operate on entirely stock hardware and compatible with basic bolt-ons (intake, turbo inlet, intercooler).
See the performance tab for power and dyno results
MK7 IS38 STAGE 2
IE Stage 2 software is for full bolt-on stock turbo builds running an aftermarket racing downpipe and catalyst. IE calibrators use advanced tuning strategies to extract additional power and account for the increased flow from an upgraded downpipe and performance hardware. The required hardware upgrades for stage 2 will increase airflow, exhaust flow, lower intake air temps, provide faster IAT recovery, and produce an overall more efficient and faster vehicle on the stock turbocharger. See below for a complete list of Stage 2 requirements.
Upgrading from Stage 1 to Stage 2 or beyond is easy! With IE, you only pay the difference in tune cost with no extra fees. When you install the required matching hardware, follow the instructions on your IE POWERlink app to purchase the tune upgrade, and you will be blowing away the competition in minutes!
HIGH/LOW TORQUE FILES
IE High Torque ECU calibrations maximize power gains throughout the entire powerband which quickly exceeds the torque limitations of the factory DSG calibration (auto trans) or the stock clutch (manual trans) that leads to clutch slipping. Stage 1 and Stage 2 files include optional Low Torque files for vehicles with stock DSG tune or stock clutch. Both high and low torque files are included and can be switched between as often as you like.
High Torque files require the additional purchase of a DSG transmission tune or clutch upgrade.
FEATURES & OPTIONS
TRUEFLEX ETHANOL
E85 fuel unlocks the most performance potential from our ECU tunes for your Golf R or S3 Gen 3 engine. Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides more horsepower and torque than running conventional gasoline and is more readily available (in most states) and less expensive than race gas. IE TrueFlex tunes take this a step further and allow for 91 octane all the way up to full E85 or anything in between on one tune without the need to reflash! TrueFlex is an included option with all stages.
Click the TrueFlex tab above to learn more about this exciting feature
INCREASED RPM
To take advantage of the new larger power band, factory rev limits have been raised to 7000RPM in all stages. On DSG equipped cars, the transmission will shift slightly before the new engine RPM (6900RPM).
DSG Tune is required to unlock higher RPM.
BRAKE BOOST
Brake Boosting provides a competitive edge in a roll racing scenario. While maintaining a constant speed and throttle position, apply brake pressure with the left foot to build boost at speed resulting in a rolling launch when brake pressure is released.
EXHAUST CRACKLE
Enabling the Exhaust Crackle feature will add a motorsport-inspired crackle sound to your exhaust note when you free-rev the engine or decelerate. This feature can be flashed on or off at will with your IE POWERlink.
For the most aggressive pops and bangs an aftermarket catback system is recommended.
STAGE 1 & 2 HARDWARE GUIDE
| PART UPGRADE | STAGE1 | STAGE 2 |
| DSG TUNE OR CLUTCH UPGRADE | REQUIRED FOR HIGH TORQUE FILES | REQUIRED |

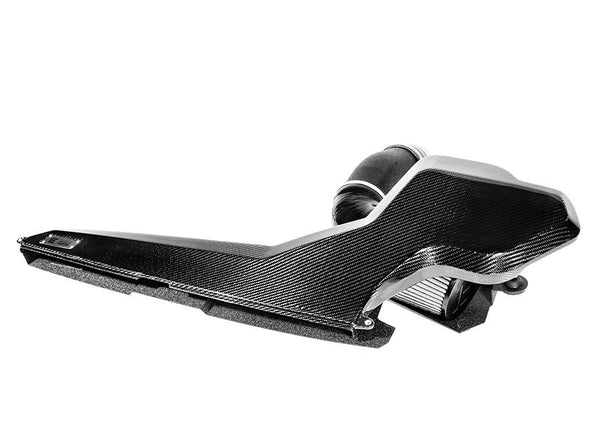

| AIR INTAKE | HIGHLY RECOMMENDED | REQUIRED |

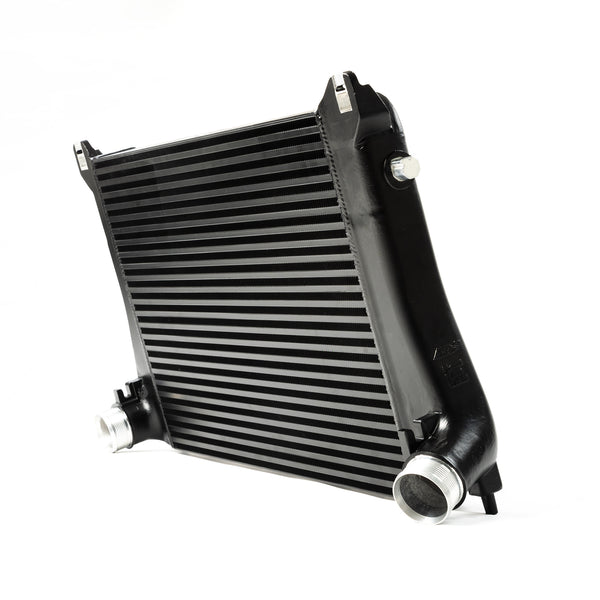

| INTERCOOLER | OPTIONAL | HIGHLY RECOMMENDED |

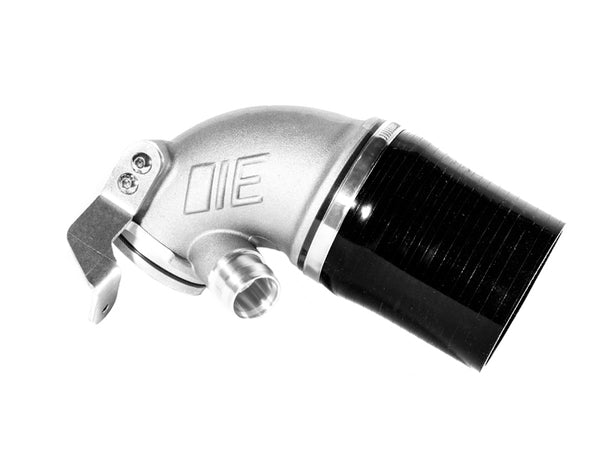

| TURBO INLET PIPE | OPTIONAL | HIGHLY RECOMMENDED |
| HPFP UPGRADE | REQUIRED FOR TRUEFLEX ONLY | REQUIRED FOR TRUEFLEX ONLY |
| TRUEFLEX SENSOR & HARNESS | REQUIRED FOR TRUEFLEX ONLY | REQUIRED FOR TRUEFLEX ONLY |

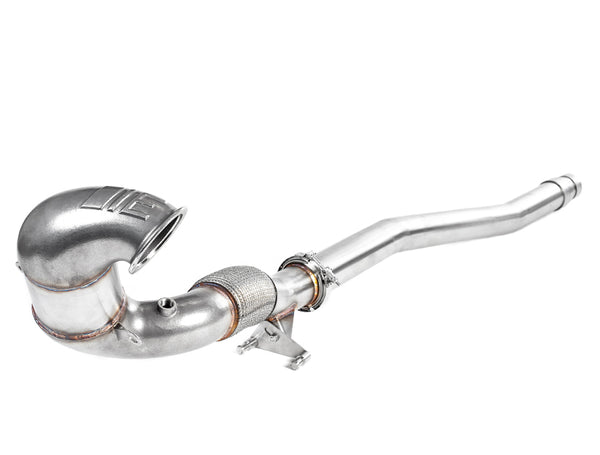

| DOWNPIPE | NOT COMPATIBLE | REQUIRED |
| CATBACK EXHAUST | OPTIONAL | OPTIONAL |
DOWNPIPE NOTICE: BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.
STAGE 1 & 2 FITMENT GUIDE
| MAKE | MODEL | YEAR | GENERATION |
| VW | Golf R | 2015-2021 | MK7/MK7.5 |
| AUDI | S3 | 2015-2021 | 8V/8V.5 |
IE tune support is not available for many Audi TTS ECUs. Please contact us with your ECU box code to confirm compatibility before ordering.
" This tune is incredible
-Tom T.
" Extremely powerful
-Dwayne F
" This tune is the best
-Zachary
LEADING FEATURES
- Up to 492HP & 500TQ
- Complete Garrett GT2260S turbo tuning suite
- 91, 93, & 104 pump gas fuel maps
- TrueFlex adapts from 91 up to E40 ethanol blend
- Power increases throughout the powerband
- Continues to produce power in the higher RPM range
- Increased power with minimal added boost lag
- Rev limiter increased to 7000 RPM (with DSG flash)
- Optimized safely for factory engine internals
- Launch control torque increased for faster launches
- Brake boosting enabled for rolling launches
- Road speed limiters removed
- Optional exhaust Crackle feature
- Engineered for all climates and elevations
- Tune & turbo provides a bolt-in and go power
STAGE 3 GT2260S IS CURRENTLY AVAILABLE FOR 2015-2017 MODEL YEARS WITH NORTH AMERICAN ECUS ONLY
STAGE 3 GT2260S
IE Stage 3 GT2260S offers an easy upgrade to the bolt-on turbo with power levels delivering up to 492HP & 500TQ on pump gas! This advanced ECU calibration when combined with the Garrett turbocharger, HPFP upgrade, and stage 2 hardware (intake, intercooler, & downpipe) delivers deceivingly fast performance and exhilarating fun.
See the performance tab for full performance results and dyno charts
STAGE 3 GT2260S TRUEFLEX
Stage 3 GT2260S TrueFlex utilizes our flex-fuel sensor and harness kit to deliver race gas power on a cost-effective ethanol blend producing a heart-pounding 490HP & 493TQ! E40 is the highest blend available within the fuel system limitations providing the maximum performance numbers without pulling power for higher E%. TrueFlex will automatically adjust between 91 octane up to E40 ethanol blend. Ethanol content must not exceed the maximum E40 blend; an ethanol content sensor kit and gauge is highly recommended.
See the TrueFlex tab to learn more about this performance flex-fuel option
GARRETT POWERMAX TURBO
When selecting a turbocharger for the base of our Stage 3 ECU tuning, IE engineers and calibrators valued a large powerband of increased power without adding turbo lag. After extensive research and testing, the easy bolt-in design of the German-engineered GT2260S from Garrett proves itself as the optimal balance of increased top-end power, smooth power delivery, and responsive boost with unnoticeable lag over stock. Backed by Garretts reputaiton of reliability with over 65 years in leading the proffessional motorsport, aftermarket, and factory turbo applications. When combined with IE's calibration strategies, the result is modern street manners with truly addicting race-car performance.
TURBO SOLD SEPARATELY
GT2260S TUNE DEVELOPMENT
ADVANCED ENGINE MANAGEMENT
Installing your Garrett PowerMax GT2260S, IE Stage 3 ECU tune, and required hardware will deliver the maximum amount of power supported by the fuel system while staying well within the safe power limits of the stock engine internals. IE calibration and software engineers employed highly advanced tuning practices and equipment to develop a complete ground-up engine management system for the unique characteristics of the new boost profile and powerband. All performance calibrations and safety coding has been retained and rewritten for the substantial power gains from the larger Garrett turbocharger.
REAL-WORLD VERIFICATION
IE calibrators performed extensive mapping rework for the larger turbo. The countless testing hours of every tune iteration have gone through thousands of dyno tests, street-tested, pushed on the track and expanded to a large beta testing community. This testing process produces a massive library of data from various vehicles, fuels, climates, weather conditions, and altitudes. That data is then used to make numerous changes to the files to maximize performance and driving characteristics. In an early beta tune track test, the results proved to produce back-to-back 10 second quarter mile runs!
STAGE 3 GT2260S HARDWARE GUIDE
| PART UPGRADE | COMPATIBILTY |
| GARRETT POWERMAX GT2260S TURBO | REQUIRED |
| DSG TUNE OR CLUTCH UPGRADE | REQUIRED |
| AIR INTAKE | REQUIRED |
| INTERCOOLER | REQUIRED |
| HPFP UPGRADE | REQUIRED |
| DOWNPIPE | REQUIRED |
| TRUEFLEX SENSOR & HARNESS KIT | REQUIRED FOR TRUEFLEX ONLY |
| CATBACK EXHAUST | OPTIONAL |
| TURBO INLET PIPE | NOT COMPATIBLE (GT2260S includes proprietary turbo inlet) |
STAGE 3 GT2260S FITMENT GUIDE
| MAKE | MODEL | YEAR | GENERATION |
| VW | Golf R | 2015-2017 | MK7 |
| AUDI | S3 | 2015-2017 | 8V |
IE Stage 3 tune support is not available for Audi TT & TTS ECUs.
*Stage 3 GT2260S tuning is currently expanded for North America (NA) ECUs. Rest-of-world (ROW) ECUs (Europe, Asia, Australia, etc.) may not be fully supported. Please contact IE Support before purchasing to verify your compatibility before ordering.
Early European Simos12 ECUs (5G0906259) can not be supported.

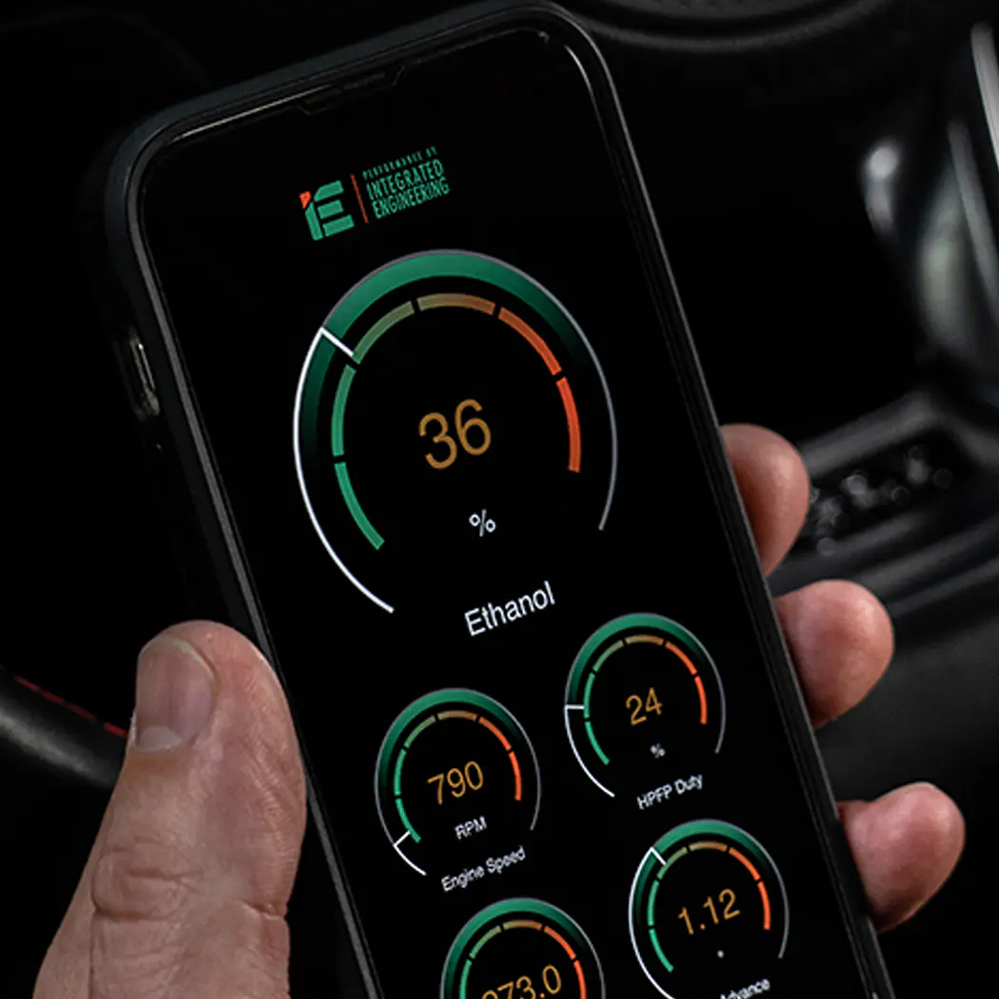

FULL E85 • PUMP FUEL • INSTANT ADAPTABILITY • ONE TUNE
INSTANT ADAPTABILITY
IE's TrueFlex unlocks the flexibility to run full E85 down to 91 octane gas and any mix in between on a single tune without the need to reflash the ECU. IE's software engineers and calibrators have developed our own advanced TrueFlex calibration, allowing the ECU to safely adjust for ethanol content down to the exact percentage in real-time. This powerful programming brings the ease and confidence to fill up at the pump and make the most power available from your fuel choice without having to drain, verify blends, or reflash the ECU.
E85 TrueFlex is an included option for all Sage 1 & 2 tunes and up to E40 on stage 3.
MAXIMUM PERFORMANCE
Factory equipped flex-fuel calibrations are designed to adjust for the cleanest emissions for different ethanol blends to get the highest MPG. This typically results in maximum timing for the lowest octane (91) across the entire range up to E85, leaving loads of untapped power on the table. IE TrueFlex is a complete performance adaptation that makes instant and continuous adjustments to performance maps such as boost and timing and releases the most available power for the fuel mix as it enters the cylinder.
RELIABLE ETHANOL
Not only does IE TrueFlex allow for amazing power potential, but it also offers the most safety from ethanol blends. The ability to truly meter and adjust for ethanol content allows the tune to instantly alter the ECU maps to keep the engine in the optimal range and protect from dangerous lean conditions. This offers amazing protection from pumps that may have lower than advertised ethanol content or if no ethanol is available. Fill up with the best quality fuel available to you, and let TrueFlex do the rest!
TRUEFLEX REQUIREMENTS
TRUEFLEX HARNESS
The EA888 Gen 3 2.0T engine is not equipped with any type of Flex Fuel systems from the factory and lacks the ability to sense fuel content. In order for IE's TrueFlex ECU tune to work, an IE TrueFlex Sensor Harness Kit is required. This easy to install harness kit installs a sensor capable of delivering instant fuel content data to the ECU calibration.
HPFP UPGRADE
Ethanol offers higher power output but also requires more fuel delivery than regular pump gas. The stock High Pressure Fuel Pump (HPFP) can not deliver enough fuel to support ethanol and must be upgraded. The IE HPFP Internal Upgrade Kit ensures there will be enough fuel supply for ethanol content to run reliably at all elevations and climate conditions safely.
TRUEFLEX FITMENT GUIDE
| MAKE | MODEL | YEAR | GENERATION |
| VW | Golf R | 2015-2021 | MK7 |
| VW | S3 | 2015-2021 | 8V |
IE TrueFlex tune support is not available for Audi TTS ECUs.
*TrueFlex tuning is currently expanded for North America (NA) ECUs. Rest-of-world (ROW) ECUs (Europe, Asia, Australia, etc.) may not be fully supported. Please contact IE Support before purchasing to verify your compatibility before ordering.
Early European Simos12 ECUs (5G0906259) can not be supported.
" Performance is astronomical
-Jarvis
" Car pulls and pulls
-Ben
" IE nailed it!!!!!!!
-David E
MAXIMIZED OUTPUT
IE ECU calibrations are dedicated to perfecting every section of the mapping to deliver a fully realized performance file right out of the gate. Maximized for full performance potential on the drag strip and road course while maintaining full comfort on your daily commute. Get ready to experience IE's Performance Software in only minutes from the comfort of your garage or driveway.
POWER GAINS
North American Region (NAR) = AKI / Rest Of World (ROW) = RON
2015-2018 MODEL YEARS
| STAGE / FUEL | HORSEPOWER | TORQUE |
| Stock VW/ Audi advertised numbers | 265 HP | 280 FT-LBS |
| Stock IE dyno numbers | 290 HP | 301 FT-LBS |
| Stage 1 91 AKI / 95 RON | 359 HP | 377 FT-LBS |
| Stage 1 93 AKI / 98 RON | 365 HP | 380 FT-LBS |
| Stage 1 TrueFlex (full E85) | 413 HP | 429 FT-LBS |
| Stage 2 91 AKI / 95 RON | 399 HP | 426 FT-LBS |
| Stage 2 93 AKI / 98 RON | 406 HP | 432 FT-LBS |
| Stage 2 104 AKI / 108 RON | 432 HP | 467 FT-LBS |
| Stage 2 TrueFlex (full E85) | 461 HP | 484 FT-LBS |
| Stage 3 GT2260S 91 AKI / 95 RON | 464 HP | 477 FT-LBS |
| Stage 3 GT2260S 93 AKI / 98 RON | 481 HP | 489 FT-LBS |
| Stage 3 GT2260S 104 AKI / 108 RON | 492 HP | 500 FT-LBS |
| Stage 3 GT2260S TrueFlex (full E40) | 490 HP | 493 FT-LBS |
2019-2021 MODEL YEARS
| STAGE / FUEL | HORSEPOWER | TORQUE |
| Stage 1 91 AKI / 95 RON | 359 HP | 377 FT-LBS |
| Stage 1 93 AKI / 98 RON | 365 HP | 380 FT-LBS |
| Stage 1 TrueFlex (E60) | 382 HP | 404 FT-LBS |
| Stage 2 91 AKI / 95 RON | 425 HP | 460 FT-LBS |
| Stage 2 93 AKI / 98 RON | 431 HP | 466 FT-LBS |
| Stage 2 104 AKI / 108 RON | 447 HP | 484 FT-LBS |
| Stage 2 TrueFlex (E60) | 445 HP | 483 FT-LBS |
DYNO CHARTS
Dyno numbers are for reference against stock numbers only. Personal dyno results will vary depending on fuel quality, local conditions, dyno brand, and correction factors.
" Car pulls hard
-VW For Life
" In love with my car all over again
-Joseph
" Power difference is insane
-Brenton

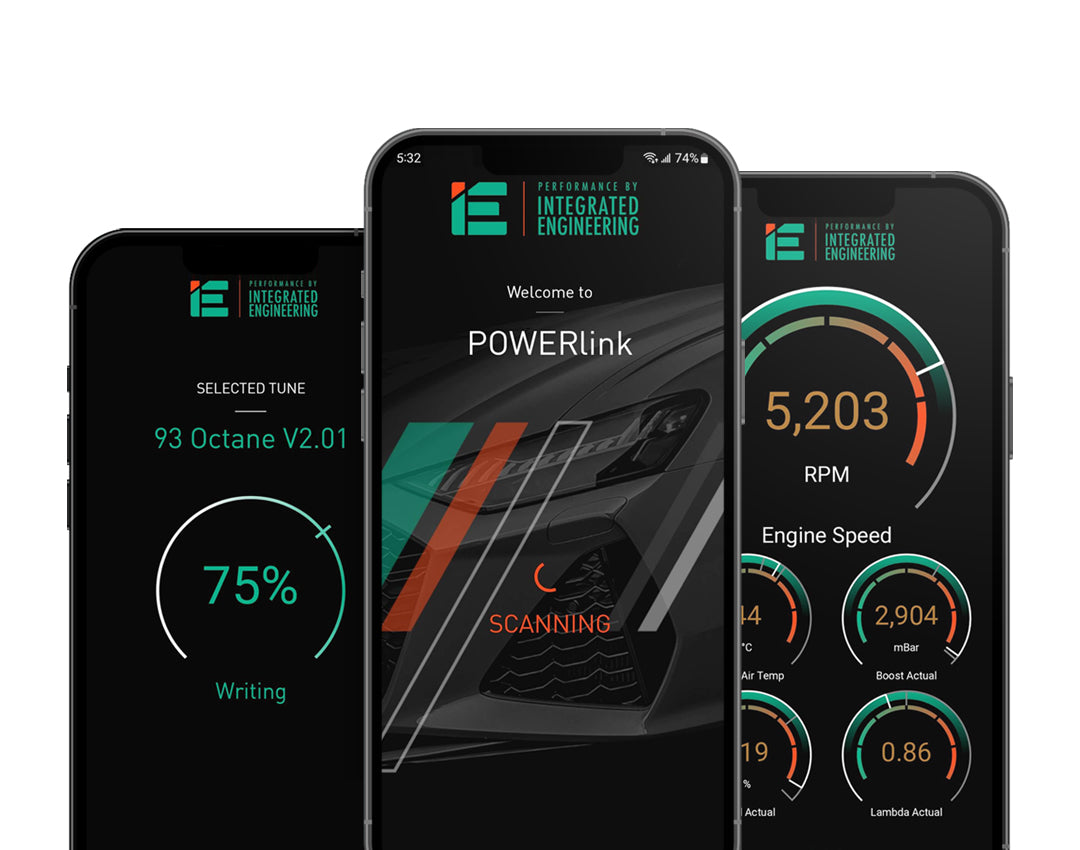

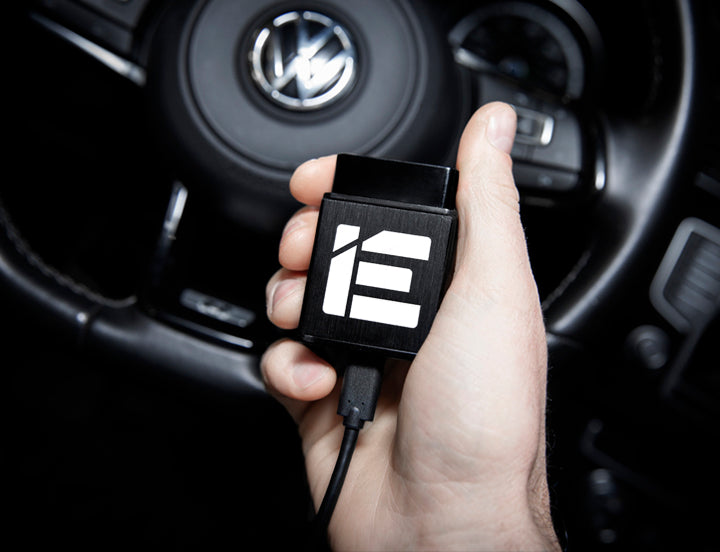

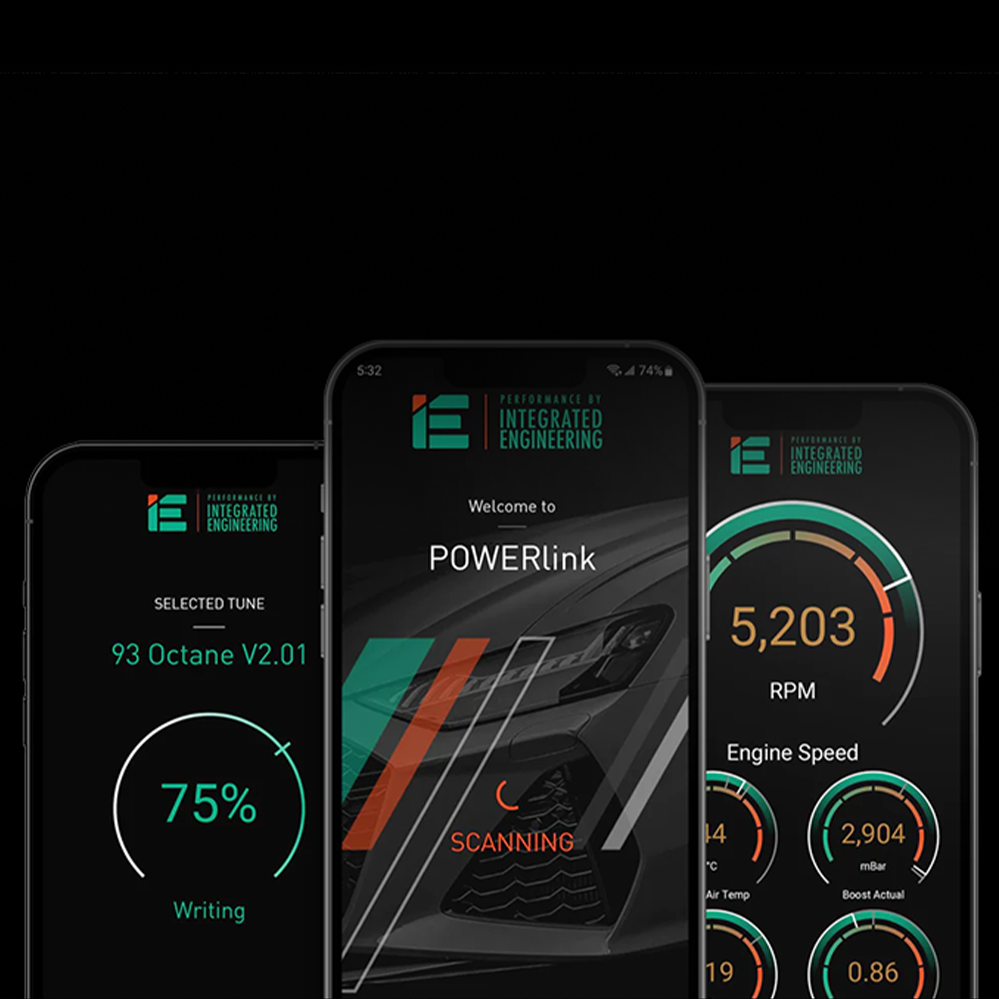

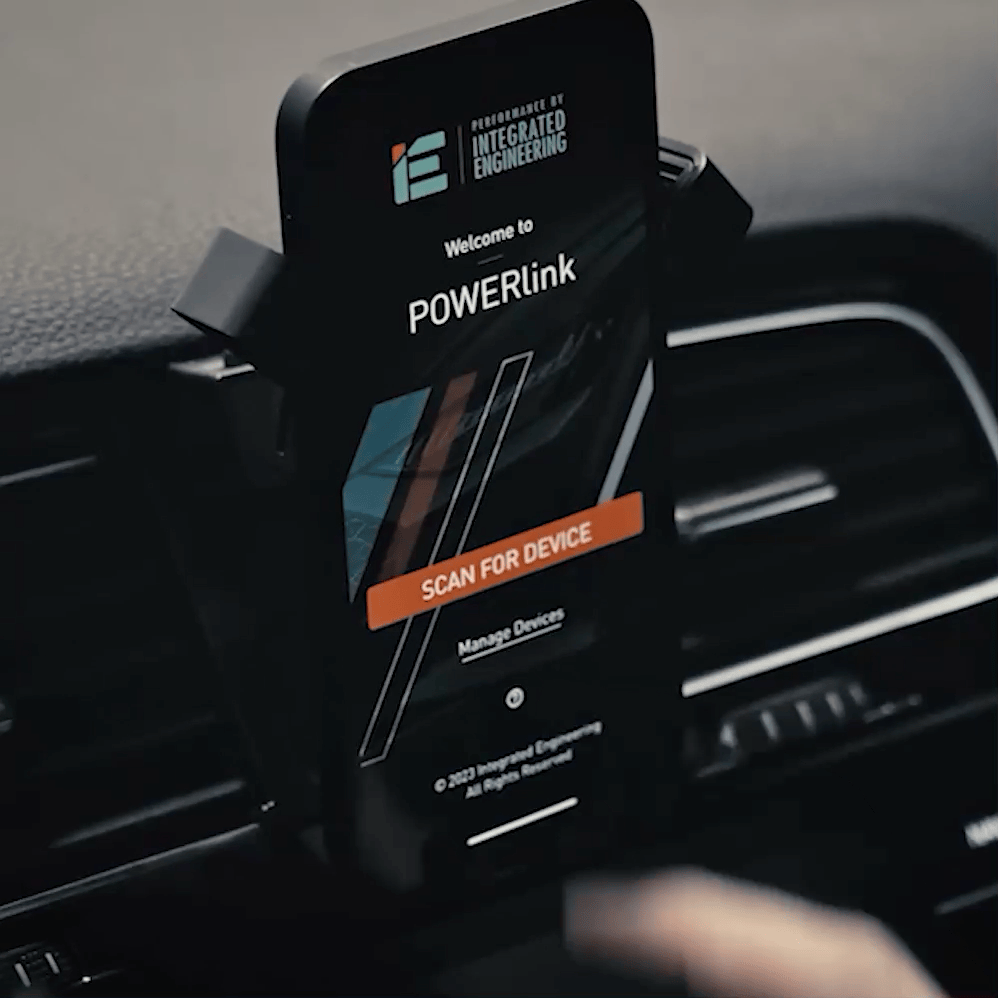

Add power to your Audi and experience the game-changing freedom of mobile flashing. The IE POWERlink cable and app connect to your Apple or Android phone, giving you the power to tune your car, change octanes, upgrade stages, perform diagnostics, monitor live gauge data, and more. All from the palm of your hand!
BLUETOOTH FLASHING
LIVE GAUGE DISPLAY
OCTANE SWITCHING

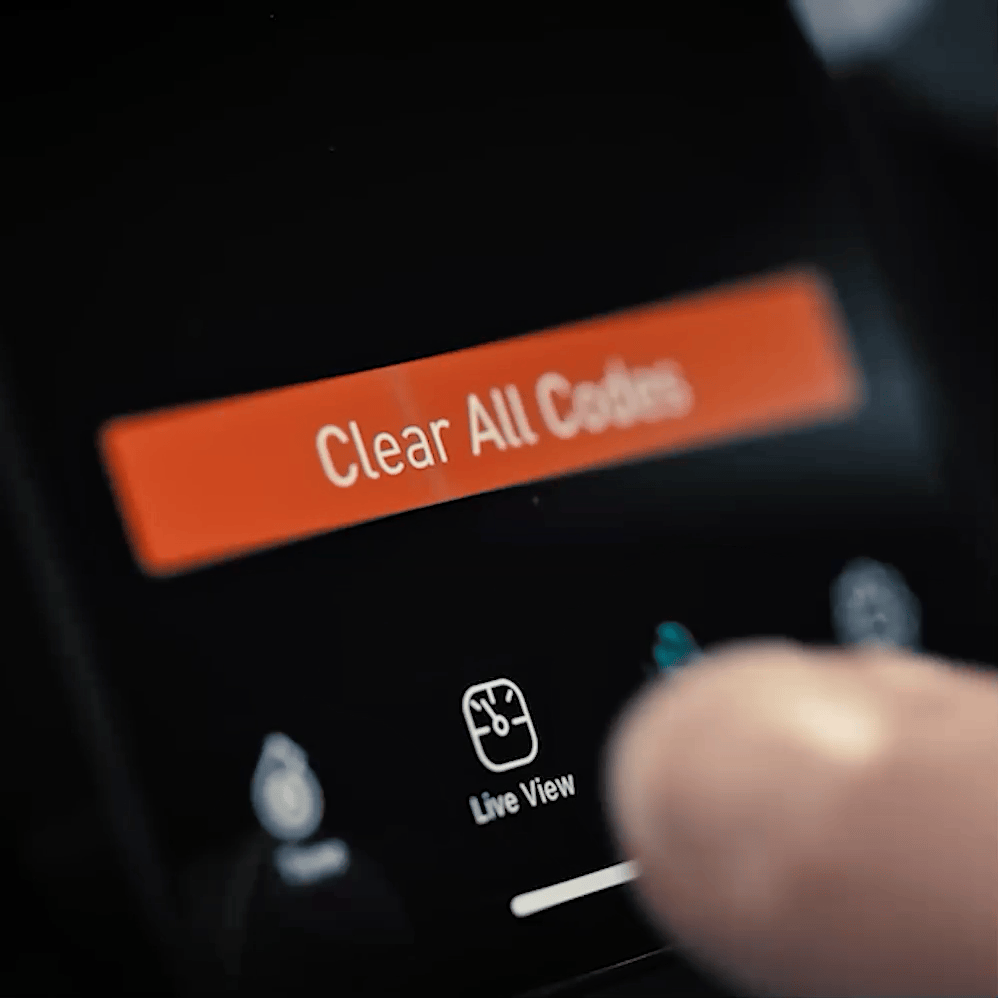

DIAGNOSTIC TOOLS
Add power to your Audi and experience the game-changing freedom of mobile flashing. The IE POWERlink cable and app connect to your Apple or Android phone, giving you the power to tune your car, change octanes, upgrade stages, perform diagnostics, monitor live gauge data, and more. All from the palm of your hand!
Add power anytime, anywhere
no laptop, no cord, no hassle.
BLUETOOTH
FLASHING
LIVE GAUGE
DISPLAY
OCTANE
SWITCHING
DIAGNOSTIC
TOOLS
" The flash install was super easy
-Jackson
" Extremely user friendly
-Matt R
" You won’t regret it
-Andres
IMPORTANT INFORMATION
TUNE UPDATES
Your tune purchase entitles you to free updates to any tune revisions, new octanes, standard features, or software updates. In the event the original vehicle manufacturer issues an ECU update, this will also be included to you through IE at no additional charge.
POWERLINK VINS
Have multiple cars in the family or friends that are also ready for an IE Tune? Your POWERlink Flash Tool can be used on up to 5 different vehicle VINs. Tunes sold separately.
TUNE REGISTRATION
Once a tune purchase is applied to your vehicle's ECU, the tune is permanently registered to the vehicle and non-transferable to other vehicles. Tunes can be transferred to a second party in the event of vehicle transfer of ownership only.
ROW (REST OF WORLD) SUPPORT
Although IE does offer ROW purchases of software files, some ECUs available only in certain countries or markets may not be supported in our current file library. If you have access to read your ECU code, please contact us to verify compatibility before purchase.
ENGINE SPECS
| ENGINE FAMILY | EA888 GEN 3 |
| CYLINDERS | 4 |
| INDUCTION | Turbocharged |
| DISPLACEMENT | 2.0L |
| ORIENTATION | Transverse |
| FUEL | Gasoline (AKI / RON) |
| AVAILABILITY | North America (NAR) & limited availability in Rest of World (ROW) |
FIVE-STAR SUPPORT
IE's number one goal from purchase to installation is to provide you with the best customer experience in the industry. We want what you want; a simple purchase process, products that exceed expectations, and a brand that's got your back. If at any point you have any questions, need help, or require support with your new tune our educated customer support team and tuning specialists are standing by and happy to help. Purchasing an IE tune not only guarantees a quality product, but that you will always have us in your corner.
